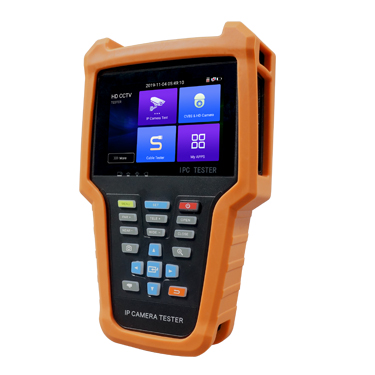

4 inch CCTV Camera Tester
Basic Functions
Size & Display resolution
4 inch IPS touch screen, 960*640 resolution
PoE power output
48V PoE power output, max power 25.5W
12V/3A power output
Output DC12V/3A power out ,supply temporarily power for the camera
External power supply
DC 12V 1A
Battery
Built-in 7.4V Lithium polymer battery, 3300mAh
Rechargeable
The full charging time is about 3-4 hours, working time lasts 8 hours.
Working Conditions
Working Temperature：-10℃---+50℃；Working Humidity：30%-90%
Dimension/Weight
204mm x 123mm x 38mm /1.5kg
RAM(DDR)
1G
FLASH(EMMC)
8G
Language
English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish etc
Specification
4 inch IPS touch screen, 960*640 resolution
H.265 & H .264 IP, 4K video display via mainstream
8MP TVI test,3840 x 2160P 12.5/15 FPS,4xzoom, video record &playback, coaxial PTZ control & call OSD menu
8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
8MP EX-SDI test, 3840 x 2160P 25/30 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *(Optional)
HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *(Optional)
3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *(Optional)
Rapid ONVIF, Auto log in and display image, create testing report
Chrome browser, test and set Axis camera
AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
CVBS camera test and PTZ control
IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
48V PoE power output, DC12V 3A, power output
Rapid video, just by one key to detect all network cameras and auto display
Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
CVBS loop test, the tester can send and receive color bar generator signal, to check BNC cable
Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
Upgraded Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables, more accurately *(Optional)
Digital Multimeter :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement *(Optional)
Optical power meter, Wavelength: 1625nm,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ～ +10 dBm, for optical power testing and Fiber link loss relative measurement *(Optional)
Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10KM *(Optional)
Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
TesterPlay: Tester, android version mobile phone and PC display at the same time
Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
HDMI input support 1080P *(Optional)
Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
Self-update software, you can install apps with android version
Media player, 4K video files and MKV/MP4 media files play
Quick office, quick office app (support excel, word, ppt format) doc. editable
Display its genuine resolution of the IP camera images
Audio in, LED lamp, calculators, music players and other application tools
7.4 V /3300mAh Lithium Ion Polymer Battery, The full charging time is about 3-4 hours, working time lasts 8 hours.
