HW-S7500-EI-48P4GF1U1C-L3
  • HW-S7500-EI-48P4GF1U1C-L3
  • HW-S7500-EI-48P4GF1U1C-L3

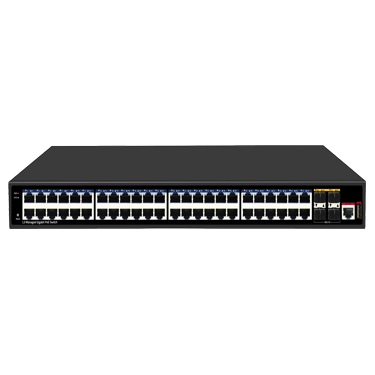

52 Port 10G Uplink 48 Ports Gigabit L3 Management Ethernet POE switch, provides 48* 10/100/1000M POE Ethernet Ports, 4* 10G SFP+ Ports, 1* console Port, 1* USB Serial Port. With perfect security control policy and CPU Protect Policy, it can improve fault tolerance and ensure the stable operation of the network and load balance of links. The switch supports automatic DoS attack defense, SNMP, IEEE 802.1, STP, RSTP, and link aggregation. With advanced security features and advanced quality of Service (QoS), it can be used as a core, distribution or access layer switch with high-end port density, switch stacking and ease of management, it is an ideal choice for a variety of business networking applications.

Features

Support IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3. IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standard

L3 management,support DHCP Server, QoS, ACL Control, SNMP V1/V2/V3, IGMP Snooping v1/v2

Support STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, remote loop back monitoring and control (802.3ah OAM)

Support multiple VLAN divisions, MAC VLAN, protocol VLAN, and Private VLAN

Support IP address +MAC address +VLAN+ port binding, DHCP Snooping, IP source and DAI protection

Support IPV4/ IPV6, RIP, OSPF

Surge Protection: Common mode≥6KV, ESD:Contact≥6KV. air≥8KV

Support WEB, TELNET, CLI, SSH, SNMP, RMON management

Support IEEE802.3at (30W) and IEEE802.3bt (90W)

Support PoE watchdog, PoE Port power supply, Power configuration and PoE time management

Packing list



Packing List

52 Port 10G Uplink 48 Port Gigabit L3 Managed Ethernet Switch

 (HW-S7500-EI-48P4GF1U1C-L3)

Power cable

Serial cable

User Manual

Bracket

Warranty Card

Ordering information

L3 Managed Core PoE Switch

HW-S7500-EI-24P4GF1B1C-L3

24*gigabit PoE ports + 4*10 gigabit uplink SFP+ optical ports + 1*USB serial port + 1*console port

HW-S7500-EI-24P4GF1B1C-L3

48*Gigabit PoE ports + 4*10 Gigabit uplink SFP optical ports + 1*USB serial port + 1* console port

L3 Managed Core Switch

HW-S7500-EI-8GF1C-L3

8*10 gigabit uplink SFP+ optical ports + 1*console port

HW-S7500-EI-24E4GF1B1C-L3

24*gigabit RJ45 ports + 4*10 gigabit uplink SFP+ optical ports + 1*USB serial port + 1*console port

HW-S7500-EI-24E8E4GF1B1C-L3

24*gigabit SFP ports + 8*gigabit RJ45 Ports(Combo) + 4*10 gigabit uplink SFP+ optical ports + 1*console port

HW-S7500-EI-24G24E6GF1C-L3

24*gigabit SFP ports +24*gigabit RJ45 ports+ 6*10 gigabit uplink SFP+ optical ports + 1*console port

HW-S7500-EI-24E4GF1B1C-L3

48*gigabit RJ45 ports + 4*10 gigabit uplink SFP+ optical ports + 1*USB port 1*console port
