HW-S6800-IT-8P4F-L2+ 8*GE POE+2*GF

HW-S6800-IT-8E4F-L2+

8*GE +4*GF

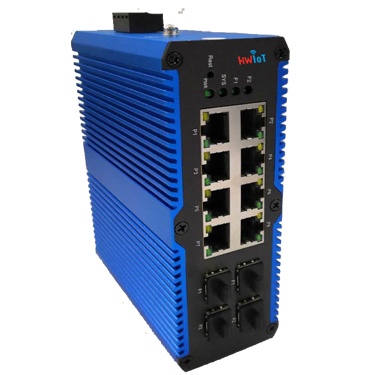

HW-S6800-IT-8E4F-L2+ is a L2 full gigabit industrial Ethernet switches providing 8*10/100/1000Base-Tx electrical ports and 4*1000Base-X optical port. It supports abundant L2 features such as VLAN, RSTP, supports easy embedded Web management and third-party SNMP management.HW-S6800-IT-8E4F-L2+ has industrial metal case with IP40 protection class and meets EMC level 3 industrial requirements. It provides DIN rail mounting design and supports wide operating temperature range of -40 to the +75°C. These features make the product ideal for cost-effective applications that require high-reliability transmission, such as video surveillance, tolling systems, ITS, and factory automation.

8 Ports 10/100/1000M Industrial Managed Ethernet Switch with 4 SFP Uplink
Backplane bandwidth:20Gbps MAC address:4K
IP40 protection
Supports 4000V DC Ethernet Surge protection
Din-Rail and Redundant

Features

Industrial Surge protection design with wide temperature

This Industrial PoE switches is a cost-efficient solution and meets the high reliability requirements demanded by industrial applications such as factory assembly line, automation, transportation and heavy Industrial factory, This Hardened Ethernet switches are designed to operate at -40 to 75°C in harsh environments where high ESD, shock and vibration ma be present and to provide an economical solution for your industrial Ethernet network.

Efficient Secure Management

For efficient management, the HW-S6800-IT-8E4F-L2+ is equipped with Web and SNMP management interfaces. With the built-in Web-based management interface, the HW-S6800-IT-8E4F-L2+ offers an easy-to-use, platform-independent management and configuration facility. For text-based management, The HW-S6800-IT-8E4F-L2+ can be accessed via Telnet and the console port. Moreover, it also offers secure remote management via any standard-based management software by supporting SNMPv3 connection which encrypts the packet content at each

Dual Power Input for High Availability Network System

The HW-S6800-IT-8E4F-L2+ features a strong dual power input system with wide-ranging voltages (12V~36V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the HW-S6800-IT-8E4F-L2+ via power supply 2 natively without any loss of operation.

Energy Saving

The HW-S6800-IT-8E4F-L2+, incorporating advanced green networking technologies and and IEEE 802.3az protocol based power saving, is able to provide power saving up to 50% less energy but maintains high performance efficiently.

Plug and Power Network Deployment

All of the RJ45 copper interfaces in the HW-S6800-IT-8E4F-L2+ support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

Flexibility and Extension Solution

The additional four mini-GBIC SFP slots built in the switch support dual speed, 1000BASE-SX/LX SFP fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) and to 20/40/60/100/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

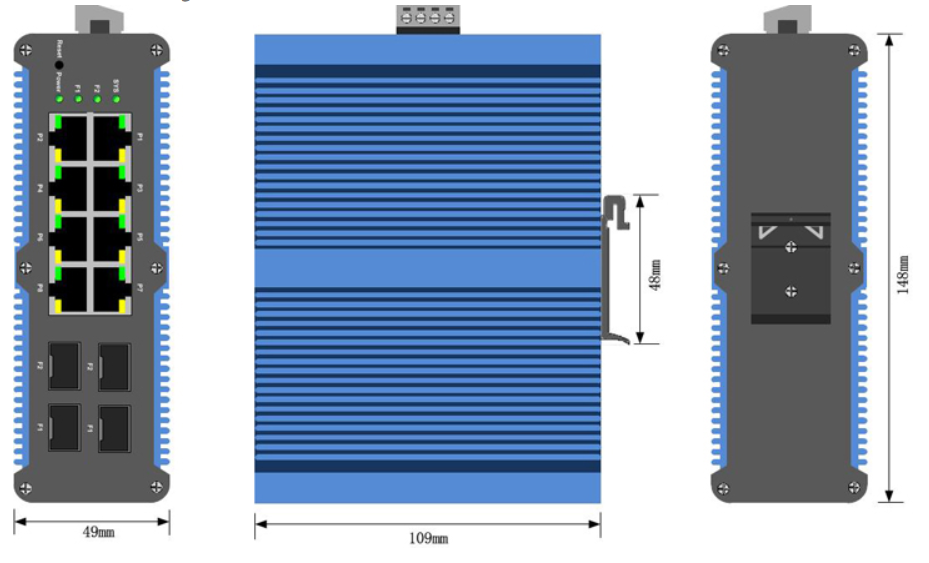

Dimension

Packing list

Packing List	CONTENT	QTY	UNIT
	8-Port 10/100/1000M Industrial Switch	1	SET
	AC power line	1	PC
	Mounting Kits	1	SET
	User guide	1	PC
	Warranty card and certificate of qualification	1	PC

Ordering information

Ordering Info
HW-S6800-IT-8E4F-L2+	810/100/1000Base-T (RJ45) + 41000Base-X (SFP, not include SFP module), industrial L2 Ethernet Switch,WEB management , Din-Rail,12-36VDC power input, dual power supply
