Huawang outdoor Industrial 8-Port 48V PoE Gigabit Ethernet Switch

HW-S6800-HI-4P2F-L2+

4*Gigabit RJ45 ports+2*Gigabit SFP/LC Ports+ 1*Console Port

HW-S6800-HI-4P2F-L2+ Industrial PoE Switch, 4x Gigabit auto-sensing RJ45 ports and 2x Gigabit SFP optical port, is designed for the security of industrial automation and coal mine factory. It is easy for setting any ports to build a fast self-healing looped ring and the time is less than 50ms, and provide a safe network environment.

Features

Support Port Aggregation, Port Rate Limitation, Broadcast Storm Restraint.

4x Gigabit Auto-sensing RJ45 Ports, 2x Gigabit SFP Optical Ports, 1x Console Port.

Compatible with IEEE802.3af/at. Support PoE configuration for each port.

L2, with better performance of management, safty, QoS and others.

With layer 2 function,including VLAN based on port, VLAN based on 802.1Q, Mirroring, Port Isolation, IGMP Snooping, DHCP Snooping, LLDP, POE+ Management, IP Protection, ARP Inspection and Access Control List etc.

Support STP(802.1D)and RSTP(802.1w).

Support jumbo frame at 9.6K.

Support advanced management through WEB, CLI, TELNET, SSH, SNMP.

G.8032, support fast protection for industrial looped-network within 50ms.

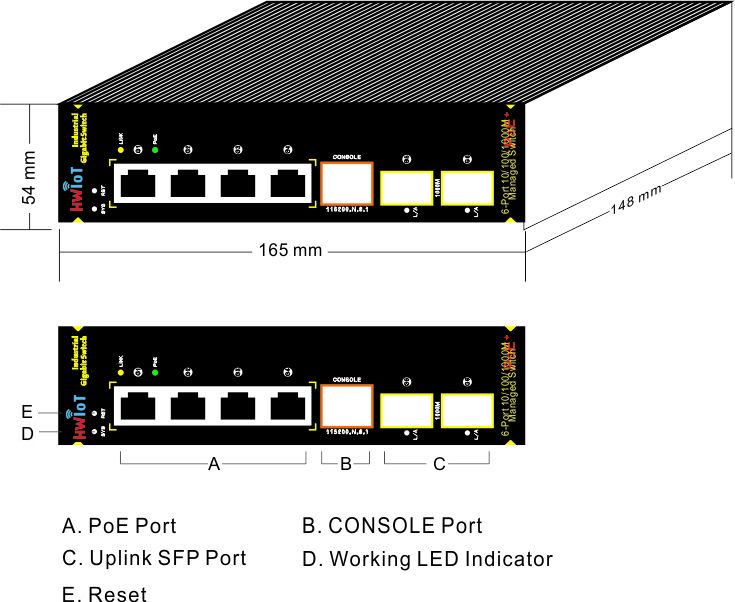

Dimension

Packing list

Packing List	6-Port Gigabit Industrial Managed PoE Switch (HW-S6800-HI-4P2F-L2+)
	User Guide
	Warranty Card

Ordering information

Model: HW-S6800-HI-4P2F-L2+

Description: 6-Port Gigabit Industrial Managed PoE Switch，4x Gigabit RJ45 Ports + 2x Gigabit SFP Optical Ports, 1-4 port support PoE, compatible with IEEE802.3af/at standard. Max PoE power for each port is up to 30W.
