HW-S5300-HI-8E2E2F-L2 1x gigabit SFP slot, 1x gigabit TP/SFP combo ports RJ45 Port: 8x 10/100BaseT ports

HW-S5300-HI-8E2E2F-L2

1x gigabit SFP slot, 1x gigabit TP/SFP combo ports RJ45 Port: 8x 10/100BaseT ports

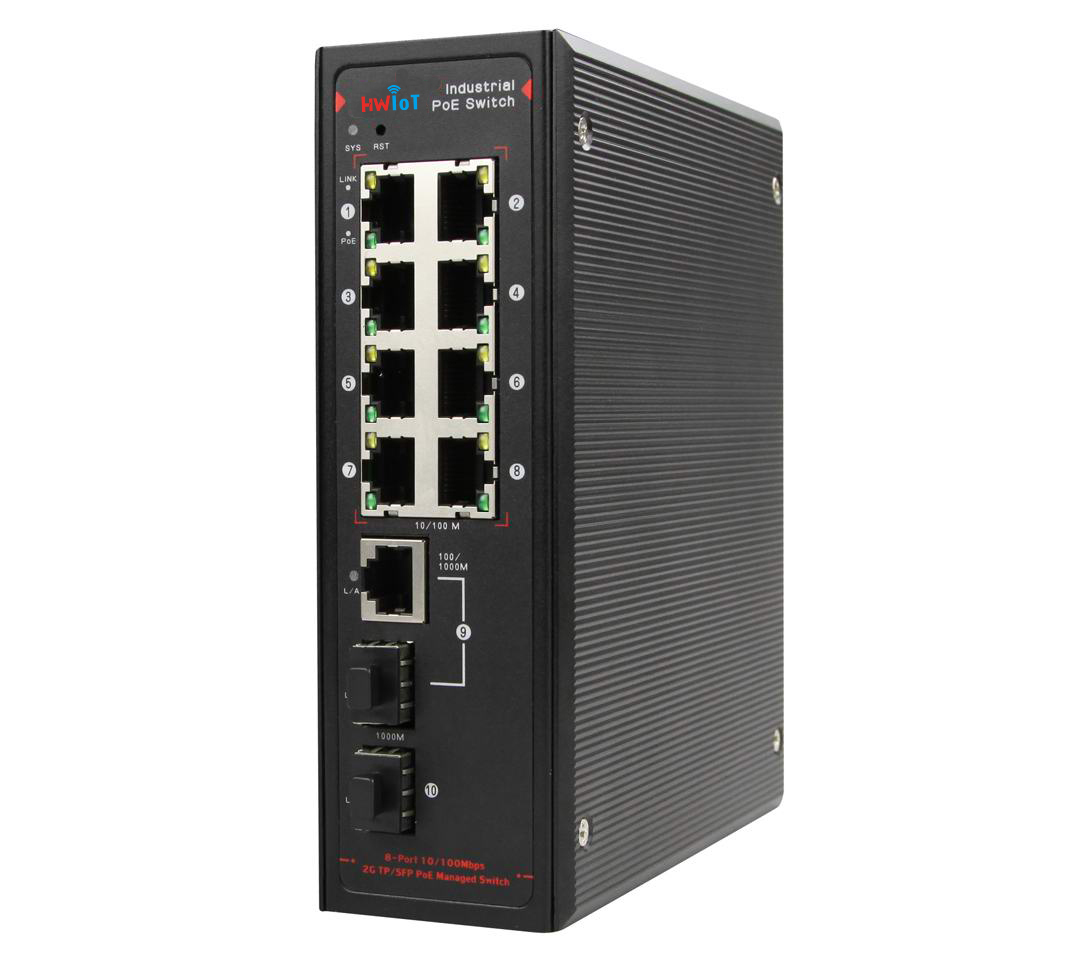

HW-S5300-HI-8E2E2F-L2 Ethernet switch comes with 8x 10/100Mbps Ethernet ports,1 x gigabit combo port, 1 SFP port. It can transfer date for industrial equipment such as weather-proof IP cameras with windshield wiper and heater, high-performance AP and industrial IP telephone.

This Ethernet switch is special for the harsh outdoor situations. In addition, it is highly flexible, the transmission distance of the SFP fiber port can be up to 120km, and with high resistance to electromagnetic interference.

Features

Managed switch for remote web control

Built-in 8x 10/100M Ethernet ports, supporting Auto MDI/MDI-X

Standard industrial design;

Suitable for harsh industrial environment;

1x 10/100/1000M TP/SFP combo port, and 1 gigabit SFP optical fiber port, supports high-bandwidth and long-distance transmission;

Wide range of working temperature;

Aluminum shell design;

No fan, no ventilation holes;

The transmission distance of the SFP fiber port can be up to 120km,and with high resistance to electromagnetic interference;

Superior performance, successfully used in industrial field;

Installation Method: DIN rail installation

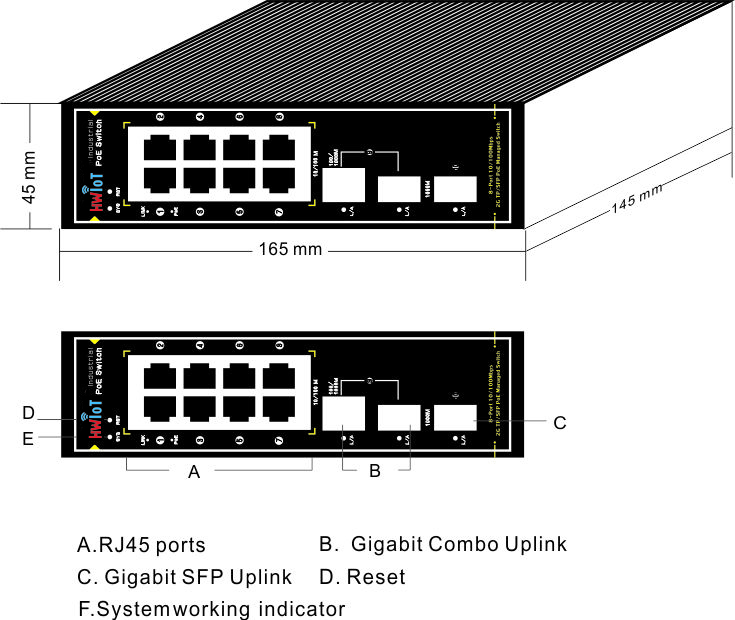

Dimension

Packing list

Packing Lists	Industrial Ethernet Managed switch (HW-S5300-HI-8E2E2F-L2)
	User Guide
	Warranty Card

Ordering information

Product Model: HW-S5300-HI-8E2E2F-L2

Product Description: Industrial Ethernet managed switch, 1x 100/1000Base SFP slot port, 1x TF/SFP combo port, and 8x self-detect RJ45 ports. Allows remote web management.
