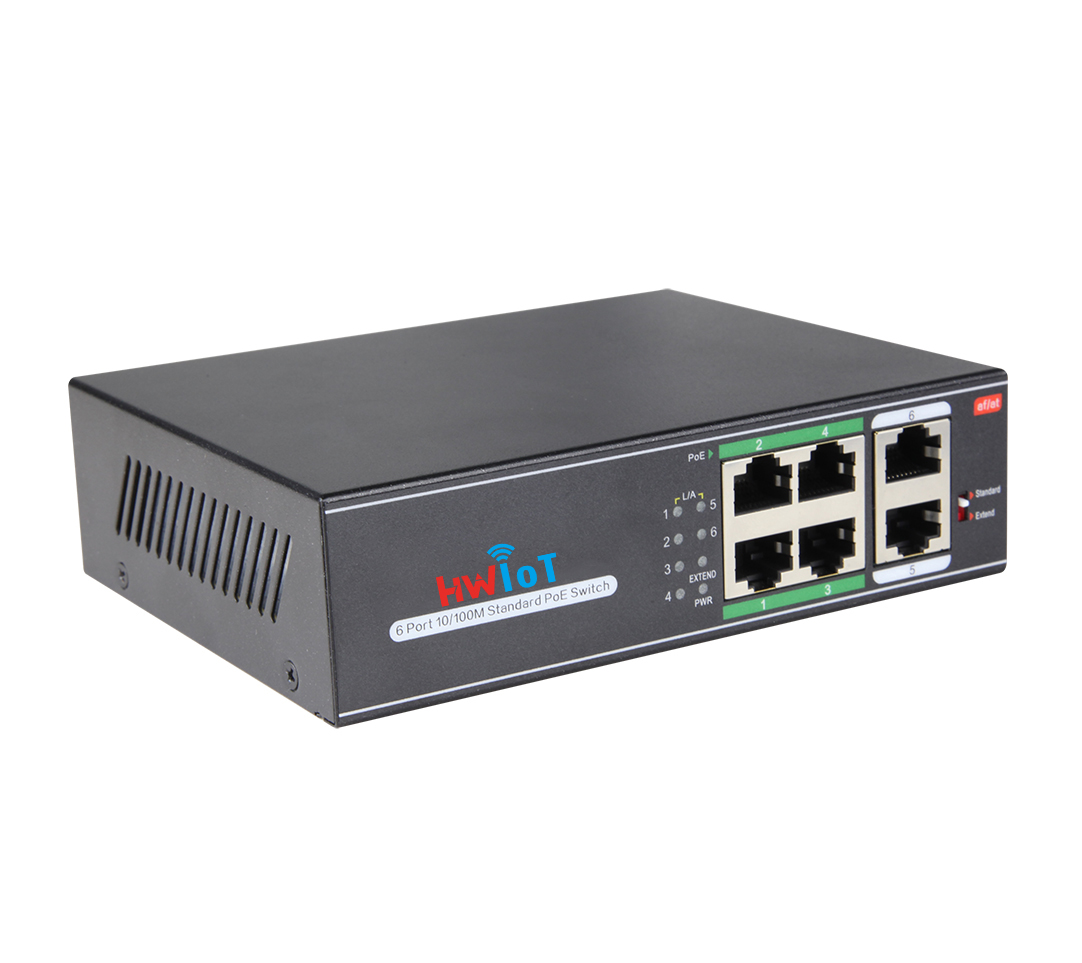

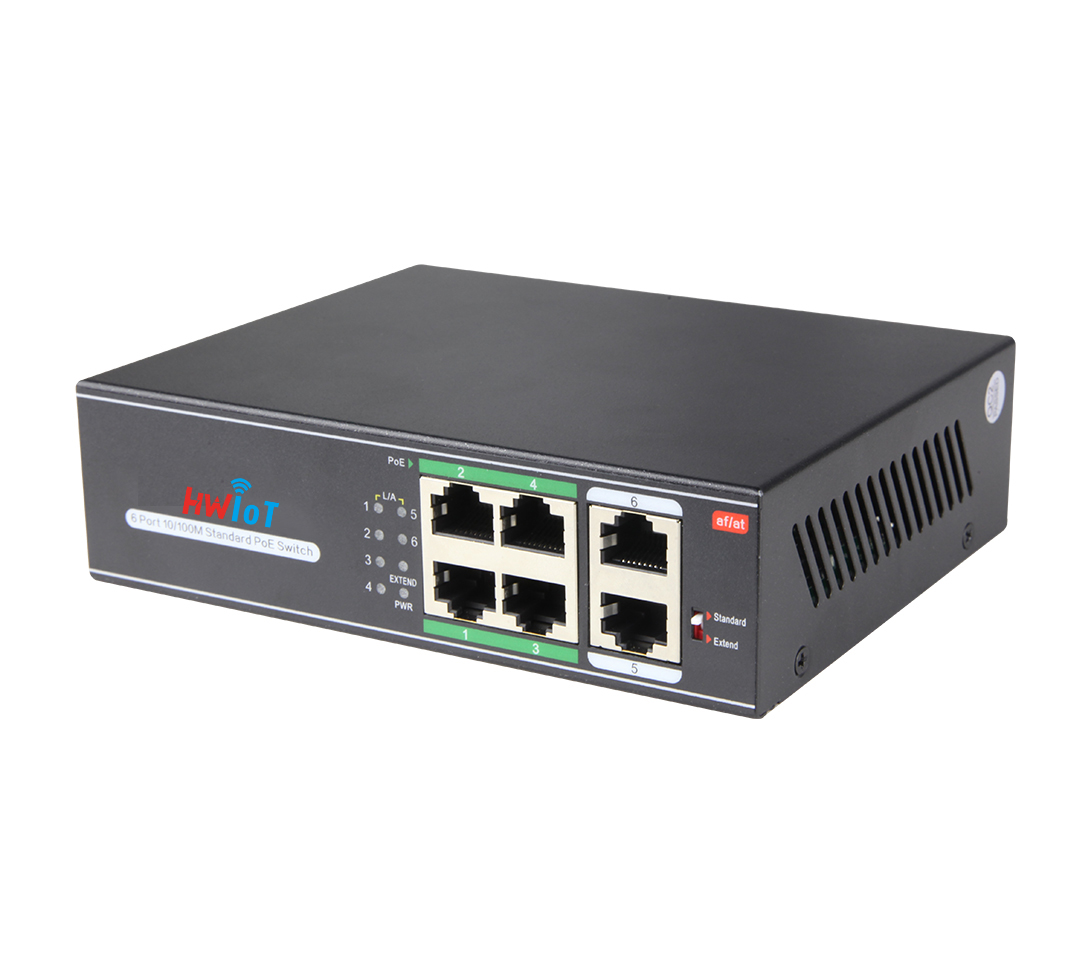

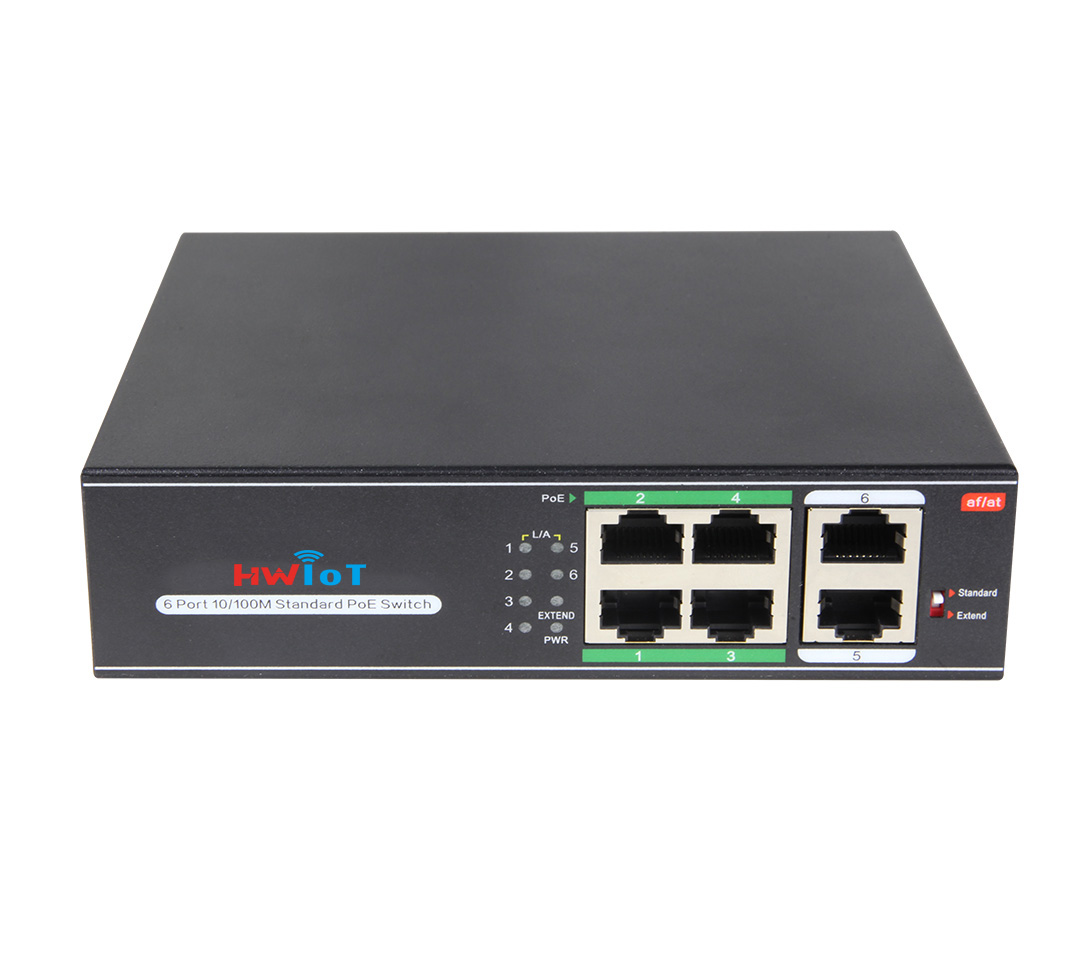

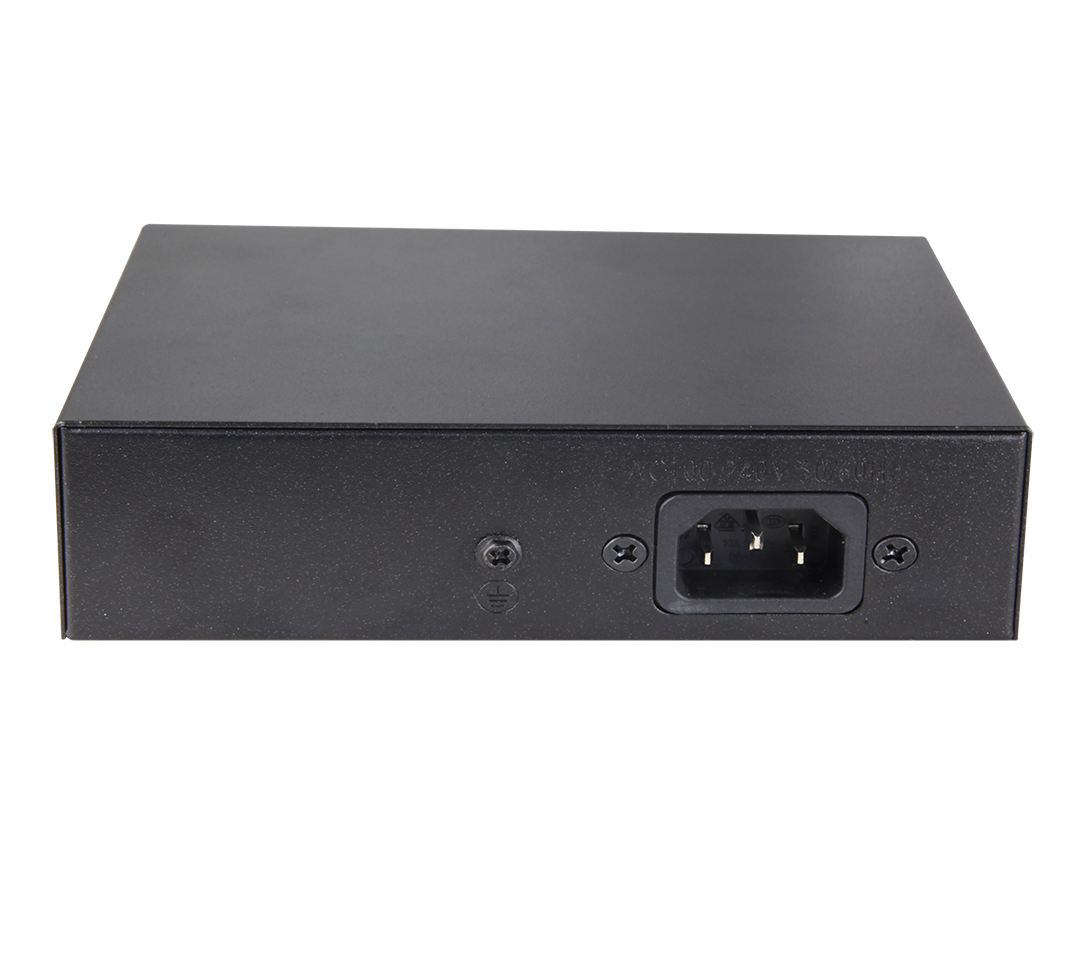

HW-S3700-SI-4PL2E Unmanaged model, plug and play, no configuration, easy to use

HW-S3700-SI-4PL2E

Unmanaged model, plug and play, no configuration, easy to use

The HW-S3700-SI-4PL2E series is a 10/100Mbps unmanaged PoE switch , it has 4*10/100M PoE ports and 2*10/100M uplink RJ45 ports, Port 1-4 can support IEEE 802.3af/at standard PoE power supply, single port PoE power up to 30W, and the maximum POE output power is 65W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, factory quarters and small and medium-sized enterprises to form an economy. Efficient network.

Features

10/100 Mbps access, Dual RJ45 port uplink

Provides 6*10/100 Base-TX RJ45 ports and dual uplink power ports, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.
All ports support non-blocking wire-speed forwarding for smoother transmission.
Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.

Intelligent PoE power supply function

4*10/100 Base-TX RJ45 ports support PoE power supply, which meets the needs of PoE power supply in various scenarios in the security field.
Comply with IEEE 802.3af /at PoE power supply standard, automatically identify PoE devices for power supply without damaging non-PoE devices. The maximum PoE output power is 65W, and the maximum PoE output power of a single port is 30W.

Easy to use

Plug and play, no configuration, simple and convenient.
Users can easily understand the working status of the device through the power indicator (PWR), port status indicator (Link/Act), and PoE operation indicator.

Innovative function (only with function switch type)

Long distance file: When opening, the speed of 1-4 port is reduced to 10M. With the existing twisted pair cable, the transmission limit of the twisted pair line can be broken, and the transmission distance can reach 250 meters; on the other hand, It can solve the problem of poor transmission caused by line aging.
Video monitoring mode: Open with the long distance switch, 1-4 ports are isolated from each other but communicate with 5-6 ports to prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms.

The equipment is stable and reliable

The host has low power consumption, no fan and silent design, galvanized steel and metal casing, and excellent heat dissipation to ensure stable operation of the product.
The equipment fully complies with the CCC, CE, FCC, RoHS safety requirements, and is safe and reliable.

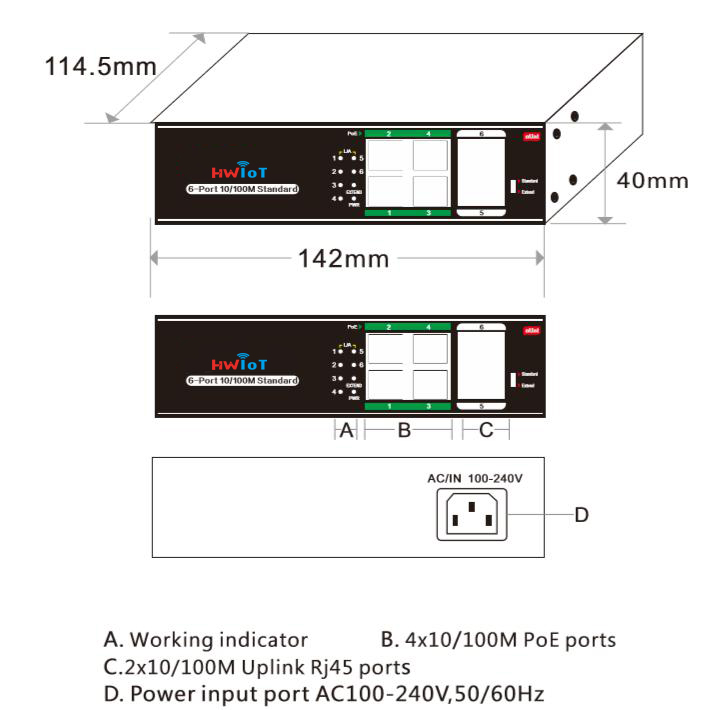

Dimension

Packing list

Packing List	CONTENT	QTY	UNIT
	6-Port 10/100Mbps PoE switch (HW-S3700-SI-4PL2E)	1	SET
	AC power line	1	PC
	User guide	1	PC
	Warranty cardand certificate of qualification	1	PC

Note: This series model does not support the mounting ear by default. If you need it, you need to purchase it separately!

Ordering information

Model	Description
HW-S3700-SI-4PL2E	Unmanaged PoE switch with 4* 10/100M PoE ports and 2* 10/100M uplink RJ45 ports. Port 1-4 can support IEEE 802.3af/at PoE Standard. Adjust function switch, Port 1-4 can support 10M/250m long distance transmission . Built-in 65W power supply .
HW-S3700-SI-8PL2E	Unmanaged PoE switch with 8* 10/100M PoE ports and 2* 10/100M uplink RJ45 ports. Port 1-8 can support IEEE 802.3af/at PoE Standard. Adjust function switch, Port 1-8 can support 10M/250m long distance transmission . Built-in 120W power supply .
