HW-S3700-EI-8P1F

Fiber POE Switch

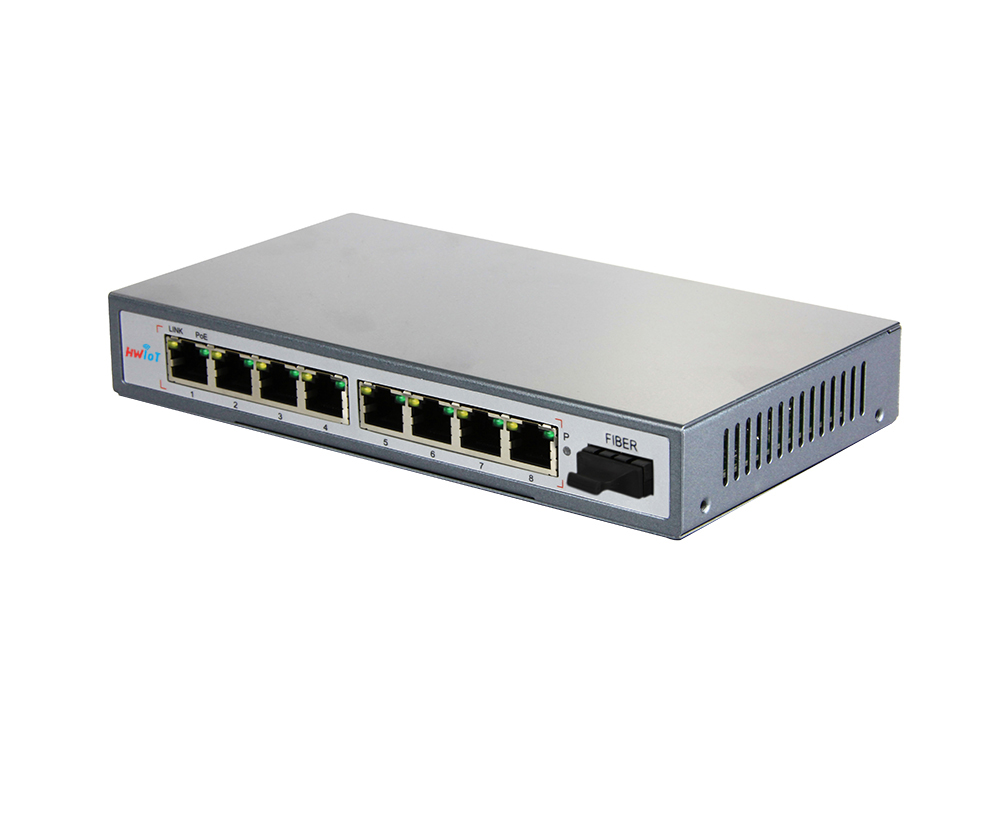

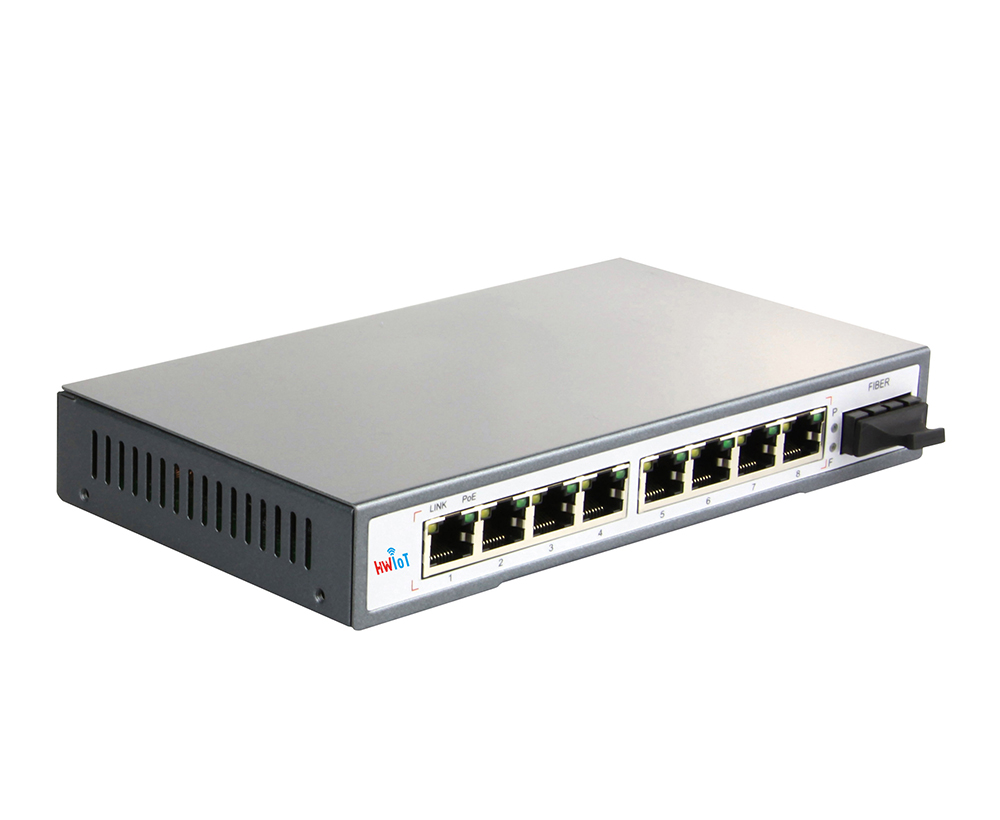

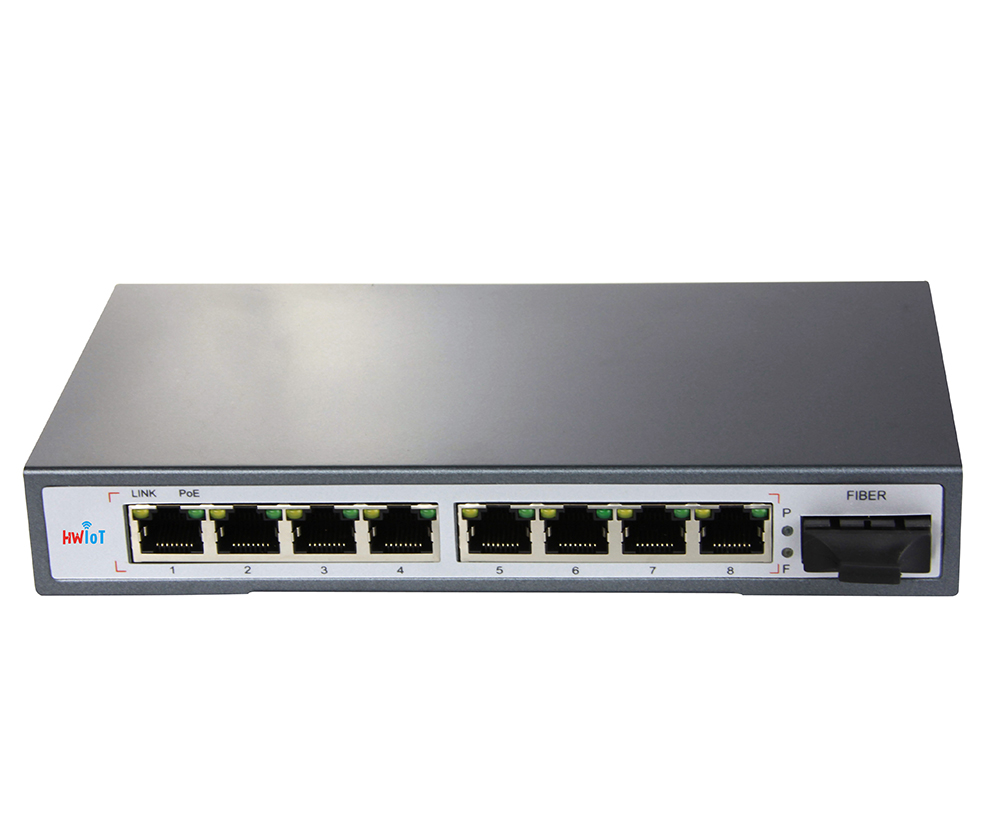

The HW-S3700-EI-8P1F series is a 10/100M unmanaged fiber PoE switch . It has 8*10/100M RJ45 ports and 1*155M SC slot port. Port 1-8 can support IEEE 802.3af/at PoE standard, single port PoE power up to 30W, the maximum PoE output power is 110W . As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. it can automatically detect and identify the the electrical equipment that meets the standard and supply power to it through the network cable, devices including wireless AP, IP camera, IP telephone and other PoE terminal equipment etc. In addition, it is suitable for networking system of hotel, campus, dormitory and small&medium enterprise etc.

Unmanaged model, plug and play, no configuration, easy to use.

Features

10/100Mbps fast Ethernet access , dual fiber uplink

Provides 8*10/100Base-TX RJ45 ports and uplink SC port for easy long distance transmission, which facilitates flexible networking and meets network requirements for various scenarios.
Support non-blocking wire speed forwarding
Support full duplex based on IEEE802.3x and half duplex based on Backpressure

Smart PoE power supply function

8*10/100Base-TX RJ45 ports support PoE power supply, which meets the requirements of PoE power supply in various scenarios in the security field.
Comply with IEEE 802.3af /at PoE power supply standard, automatically identify PoE devices for power supply without damaging non-PoE devices. The maximum PoE output power is 110W, and the maximum PoE output power of a single port is 30W.

Easy to operate

Plug and play, no configuration, simple and convenient.
User can easily understand the working status of the device through the power indicator (P), port status indicator (Link), and PoE operation indicator.

The equipment is stable and reliable

The host has low power consumption, fanless mute design, galvanized steel and metal casing, and excellent heat dissipation to ensure stable operation of the product.
The equipment fully meets the safety requirements of CCC,CE, FCC, and RoHS and is safe and reliable to use.

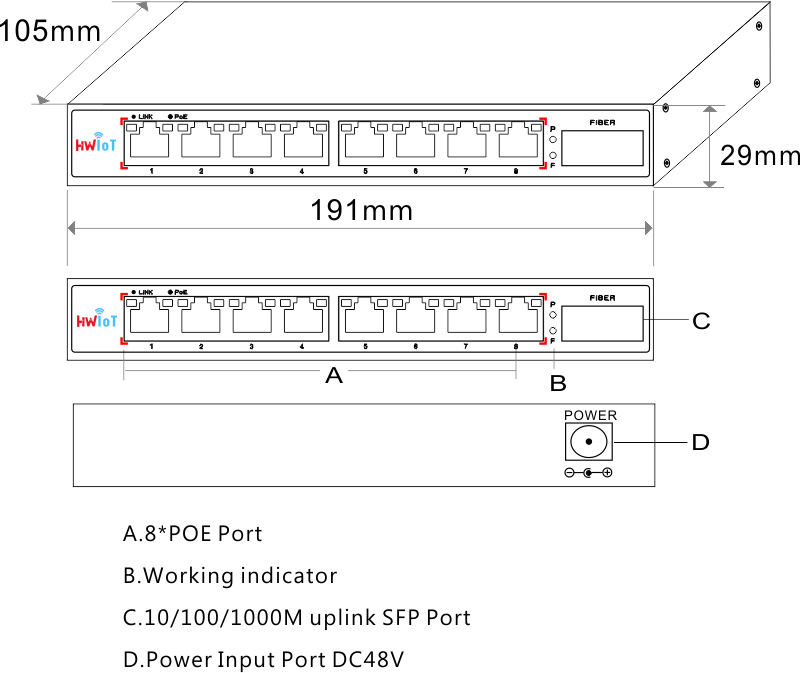

Dimension

Packing list

PACKING LIST	CONTENT	QTY	UNIT
	9-port 10/100M fiber PoE switch (HW-S3700-EI-8P1F)	1	SET
	Power Adapter+AC Power Cable	1	SET
	Mounting Kits (Hanging ear )	1	SET
	User Guide	1	PC
	Warranty Card	1	PC

Ordering information

Model	Description
HW-S3700-EI-8P1F	Unmanaged fiber PoE switch with 810/100M PoE ports and 1155M uplink SC port,Port 1-8 can support IEEE802.3af/at PoE standard . By default, the SC port 1310nm/20km single mode dual fiber module is configured. External 110W power supply.
HW-S3700-EI-8HP1F	Unmanaged fiber PoE switch with 810/100M PoE ports and 1155M uplink SC port, Port 1-8 can support IEEE802.3af/at PoE standard . By default, the SC port 1310nm/20km single mode dual fiber module is configured. External 250W power supply.
HW-S3700-EI-8P1FM	Unmanaged fiber PoE switch with 810/100M PoE ports and 1155M SC uplink port . Port 1-8 can support IEEE 802.3af/at international standard. By default, the SC port 850nm/0.5km or 1310nm/2km multi-mode dual fiber module is configured. External 110W power supply.
HW-S3700-EI-8HP1FNM	Unmanaged fiber PoE switch with 810/100M PoE ports and 1155M SC uplink port . Port 1-8 can support IEEE 802.3af/at international standard. By default, the SC port 850nm/0.5km or 1310nm/2km multi-mode dual fiber module is configured. External 250W power supply.
HW-S3700-EI-8P1FA	Unmanaged fiber PoE switch with 810/100M PoE ports and 1155M uplink SC port . Port 1-8 can support IEEE 802.3af/at international standard. By default, the SC port 1310nm/20km single mode single fiber module is configured. External 110W power supply.
HW-S3700-EI-8HP1FA	Unmanaged fiber PoE switch with 810/100M PoE ports and 1155M uplink SC port . Port 1-8 can support IEEE 802.3af/at international standard. By default, the SC port 1310nm/20km single mode single fiber module is configured. External 250W power supply.
HW-S3700-EI-8P1FB	Unmanaged fiber PoE switch with 810/100M PoE ports and 1155M uplink SC port . Port 1-8 can support IEEE 802.3af/at international standard. By default, the SC port 1550nm/20km single mode single fiber module is configured. External 110W power supply.
HW-S3700-EI-8HP1FB	Unmanaged fiber PoE switch with 810/100M PoE ports and 1155M uplink SC port . Port 1-8 can support IEEE 802.3af/at international standard. By default, the SC port 1550nm/20km single mode single fiber module is configured. External 250W power supply.
