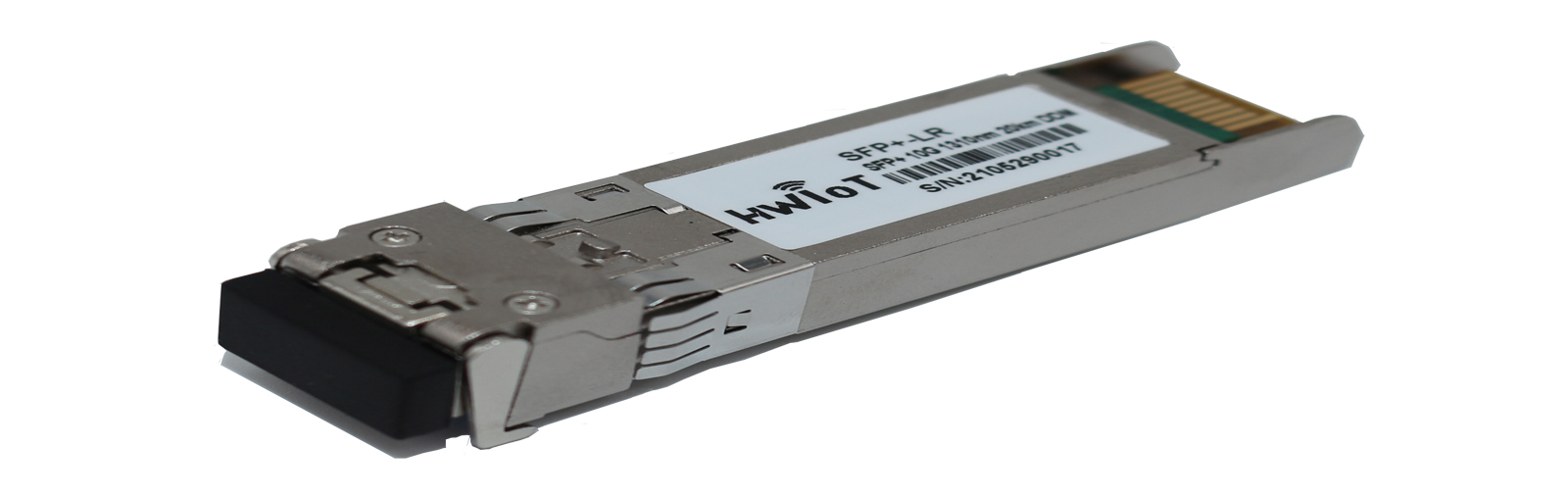

The HW-FST13-R20 is a hot pluggable duplex-LC optical transceiver designed for using in 10Gbps serial applications such as SONET OC192/SDH STM64, 10Gigabit Ethernet and 10Gbps Fiber Channel applications. It operates with single +3.3V power supplies. The transceiver is compatible with the industry standard SFP connector and cage and conforms to the 10Gbps SFP+ multi-source agreement (MSA).
The transceiver consists of optical subassemblies (OSA) for both transmitter and the receiver, and an electrical subassembly, which packaged together in a metal enclosure. The TOSA is a high-performance1310nm DFB with isolater, and the ROSA is a high speed PIN type detector with a built-in preamplifier.
