The transceiver is a low power, high performance, cost effective module supporting data-rate up to 155Mbps and 2km transmission distance with multimode fiber. The low jitter and high sensitivity are extinguished features with 1310nm FP laser and PIN/TIA receiver. It incorporates TX_DIS control, TX-FAULT and RX_LOS monitor functions. The devices are Class I laser safety compliant. |
|
HW-FSM85-R2 |
|
|

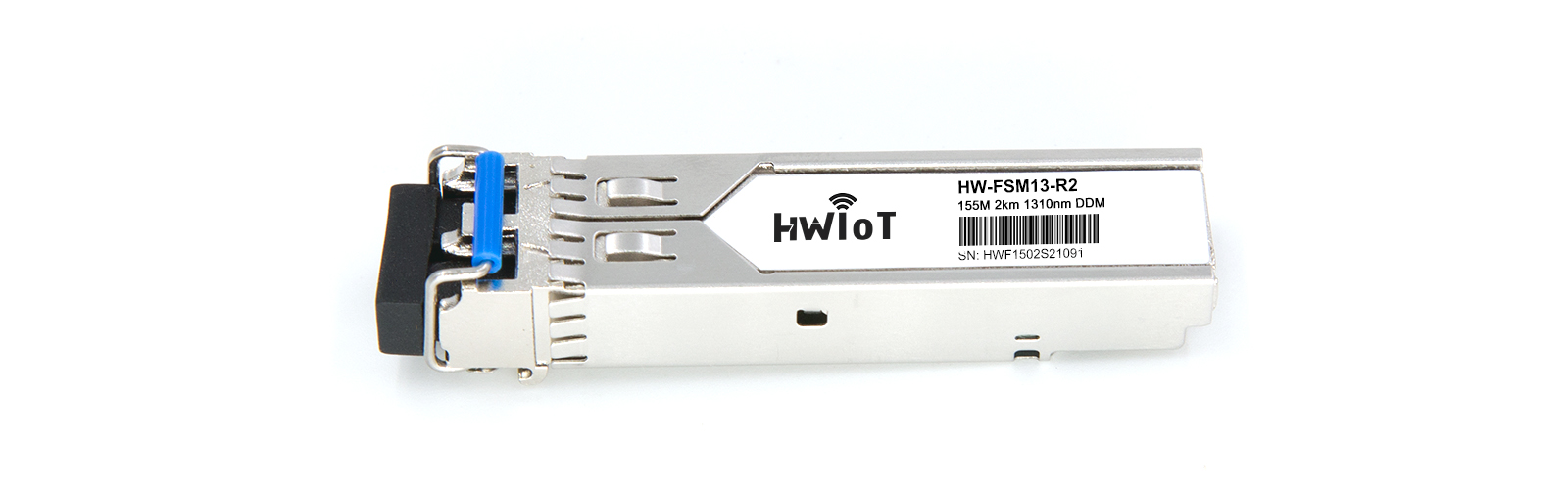

HW-FSM13-R2 |
Dual Fiber SFP, 155M, 1310nm, FP, 2km, LC Connector |
|
HW-FSM13-R20 |
Dual Fiber SFP, 155M, 1310nm, FP, 20km, LC Connector |
|
HW-FSM13-R40 |
Dual Fiber SFP, 155M, 1310nm, FP, 40km, LC Connector |
|
HW-FSM15-R80 |
Dual Fiber SFP, 155M, 1310nm, DFB, 80km, LC Connector |
|
HW-FSM1315-R20 |
Single Fiber SFP, 155M, TX1310nm RX1550nm, FP, 20km, LC Connector |
|
HW-FSM1513-R20 |
Single Fiber SFP, 155M, TX1550nm RX1310nm, FP, 20km, LC Connector |
|
HW-FSM1315-R40 |
Single Fiber SFP, 155M, TX1310nm RX1550nm, DFB, 40km, LC Connector |
|
HW-FSM1513-R40 |
Single Fiber SFP, 155M,TX1550nm RX1310nm, DFB, 40km, LC Connector |
|
HW-FSM1415-R80 |
Single Fiber SFP, 155M, TX1490nm RX1550nm, DFB, 80km, LC Connector |
|
HW-FSM1514-R80 |
Single Fiber SFP, 155M, TX1550nm RX1490nm, DFB, 80km, LC Connector |
|
HW-FSMW1216-R40 |
CWDM SFP, 155M, 1271~1611nm, 40km, LC Connector |
|
HW-FSMW1416-R80 |
CWDM SFP, 155M, 1471~1611nm, 80km, LC Connector |
