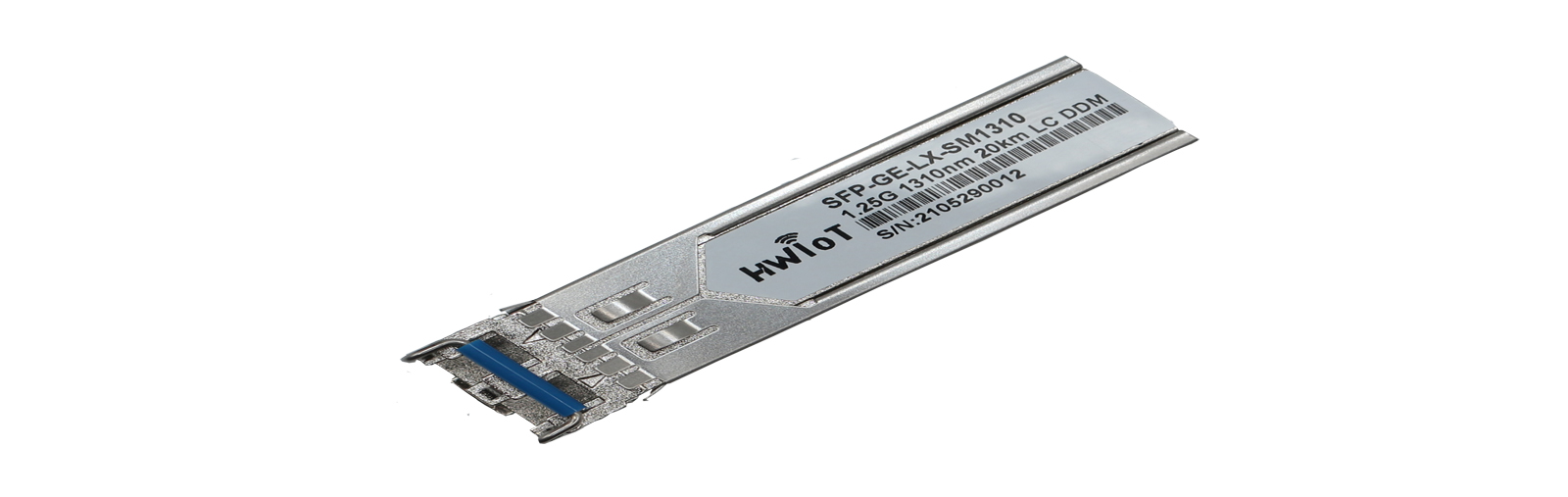

The transceiver is a low power, high performance, cost effective module supporting data-rate up to 1.25Gbps/1.0625Gbps and 20km transmission distance. The low jitter and high sensitivity are extinguished features with 1310nm FP laser and PIN/TIA receiver. It incorporates TX_DIS control, TX-FAULT and RX_LOS monitor functions. The devices are Class I laser safety compliant. |
|
HW-FS1G850-R500M |
Dual Fiber SFP,1.25G, 850nm VCSEL, 0.5km, LC Connector |
|
HW-FS1G13-R20 |
Dual Fiber SFP,1.25G, 1310nm, FP, 20km, LC Connector |
|
HW-FS1G13-R40 |
Dual Fiber SFP,1.25G, 1310nm, DFB, 40km ,LC Connector |
|
HW-FS1G15-R80 |
Dual Fiber SFP,1.25G, 1550nm, DFB, 80km, LC Connector |
|
HW-FS1G1315-R20 |
Single Fiber SFP,1.25G, TX1310nm RX1550nm, DFB, 20km, LC Connector |
|
HW-FS1G1513-R20 |
Single Fiber SFP,1.25G, TX1550nm RX1310nm, DFB, 20km, LC Connector |
|
HW-FS1G1315-R40 |
Single Fiber SFP,1.25G, TX1310nm RX1550nm, DFB, 40km, LC Connector |
|
HW-FS1G1513-R40 |
Single Fiber SFP,1.25G, TX1550nm RX1310nm, DFB, 40km, LC Connector |
|
HW-FS1G1415-R80 |
Single Fiber SFP,1.25G, TX1490nm RX1550nm, DFB, 80km, LC Connector |
|
HW-FS1G1514-R80 |
Single Fiber SFP, 1.25G, TX1550nm RX1490nm, DFB, 80km, LC Connector |
|
HW-FS1G1216-R40 |
CWDM SFP, 1.25G,1271~1611nm, 40km, LC Connector |
|
HW-FS1G1416-R80 |
CWDM SFP, 1.25G, 1471~1611nm, 80km, LC Connector |
