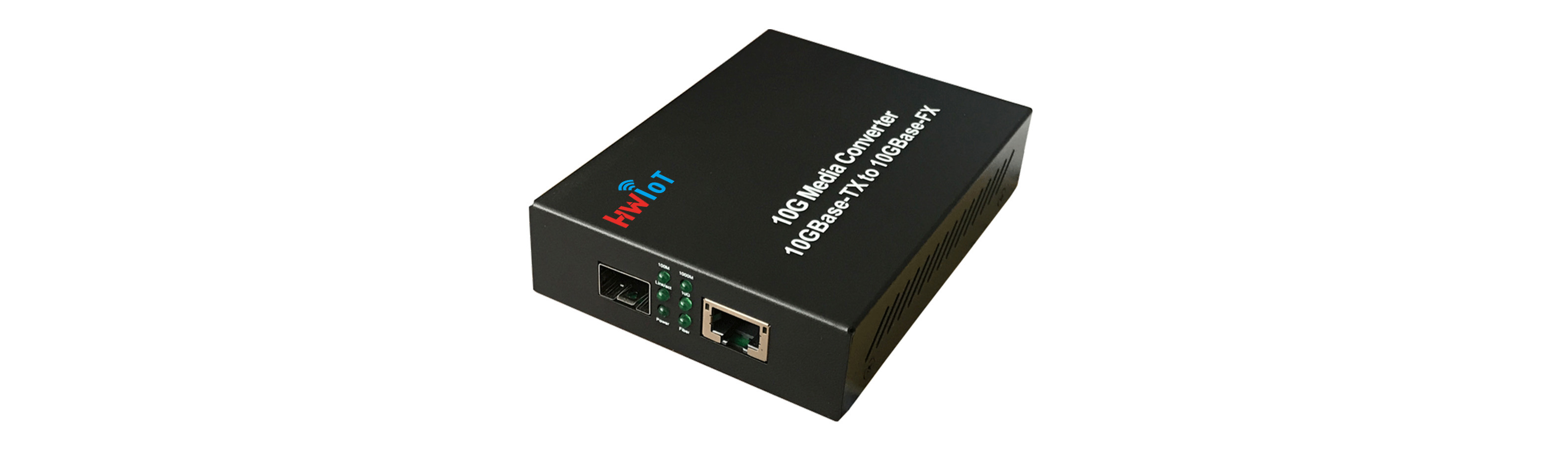

10G Optical Media Converter

HW-F1T-Y

The HW-F1T-Y is a 10Gbase-T to 10Gbase-SR/LR/ER/ZR Ethernet Media Converter. It has one 10Gbps UTP port and one 10Gbps fiber port. It extends the transmission distance of a network from 550m via copper cables to 100km. It can extend the transmission distance, and also with many other advantages such as isolation protection, good data security, working stable and easy to maintain.

Features

Adopts Marvell chip, which ensures non-blocking data transmission, security and stability

Supports 10Gbase-T to 10Gbase-SR/LR/ER/ZR on the Ethernet port

Support 3R (Balanced amplification, clock extraction, integral regeneration) function on the fiber port to ensure small data jitter.

Small latency on the data transmission.

Support various wavelengths including 850nm, 1310nm, 1550nm and CWDM/DWDM under ITUT rule.

Supports Jumbo Frame.

Dimension

Packing list

PACKING LIST	CONTENT	QTY	UNIT
	10/100M media converter(HW-F1T-Y)	1	SET
	User Guide	1	PC
	Warranty Card	1	PC

Ordering information

Model Name	Description
HW-F1T-Y	10Gbase-T to 10Gbase-SR/LR/ER/ZR,SFP slot
