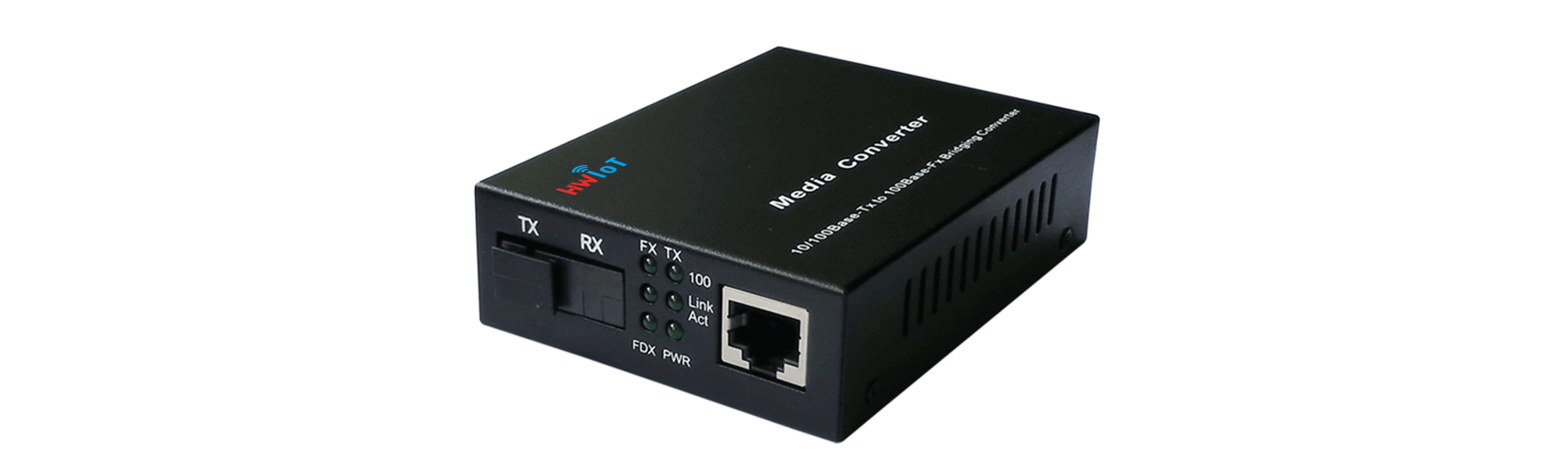

HW-F100-Y20 10/100M Optical Media Converter

HW-F100-Y20

10/100M Optical Media Converter

The HW-F100-Y20 is a 10/100Mbps adaptive fast Ethernet Media Converter. It has one 10/100Mbps UTP port and one 155Mbps fiber port. It extends the transmission distance of a network from 100m via copper cables to 120km. It can extend the transmission distance, and there are also many other advantages such as isolation protection, good data security, working stability and easy to maintain.

Features

1×100Base-FX to 1×10/100Base-TX Port

RJ45 support auto MDI/MDI-X function

Auto-negotiation speed, half/full-duplex

Each port has the complete LED Indicator light

Supports IEEE802.1d Spanning Tree

Supports high performance QoS function on each port

Flow control fully supported

Supports broadcast storm protection

Wide-range redundant power design ( 4.5~20VDC )

Supports max forwarding packet length 1552 bytes option

Requires no configuration and will instantly operate as soon as you power it up

Small volume, light weight

High-grade aluminum alloy shell with speedily heat dissipation

Low power consumption; power is only 1.5W when each port is working

Dimension

Packing list

PACKING LIST	CONTENT	QTY	UNIT
	10/100M media converter(HW-F100-Y20)	1	SET
	User Guide	1	PC
	Warranty Card	1	PC

Ordering information

HW-F100-Y20	1×100Base-FX to 1×10/100Base-TX,SMF,1310nm,SC,20km
HW-F100-YA20	1×100Base-FX to 1×10/100Base-TX, Bi-Di TX1310/RX1550nm,SC,20km
HW-F100-YB20	1×100Base-FX to 1×10/100Base-TX, Bi-Di TX1550/RX1310nm,SC,20km
HW-F100-Y40	1×100Base-FX to 1×10/100Base-TX,SMF,1310nm,SC,40km
HW-F100-YA40	1×100Base-FX to 1×10/100Base-TX, Bi-Di TX1310/RX1550nm,SC,40km
HW-F100-YB40	1×100Base-FX to 1×10/100Base-TX, Bi-Di TX1550/RX1310nm,SC,40km
