HW-F100-2-SP-HI
  • HW-F100-2-SP-HI
  • HW-F100-2-SP-HI

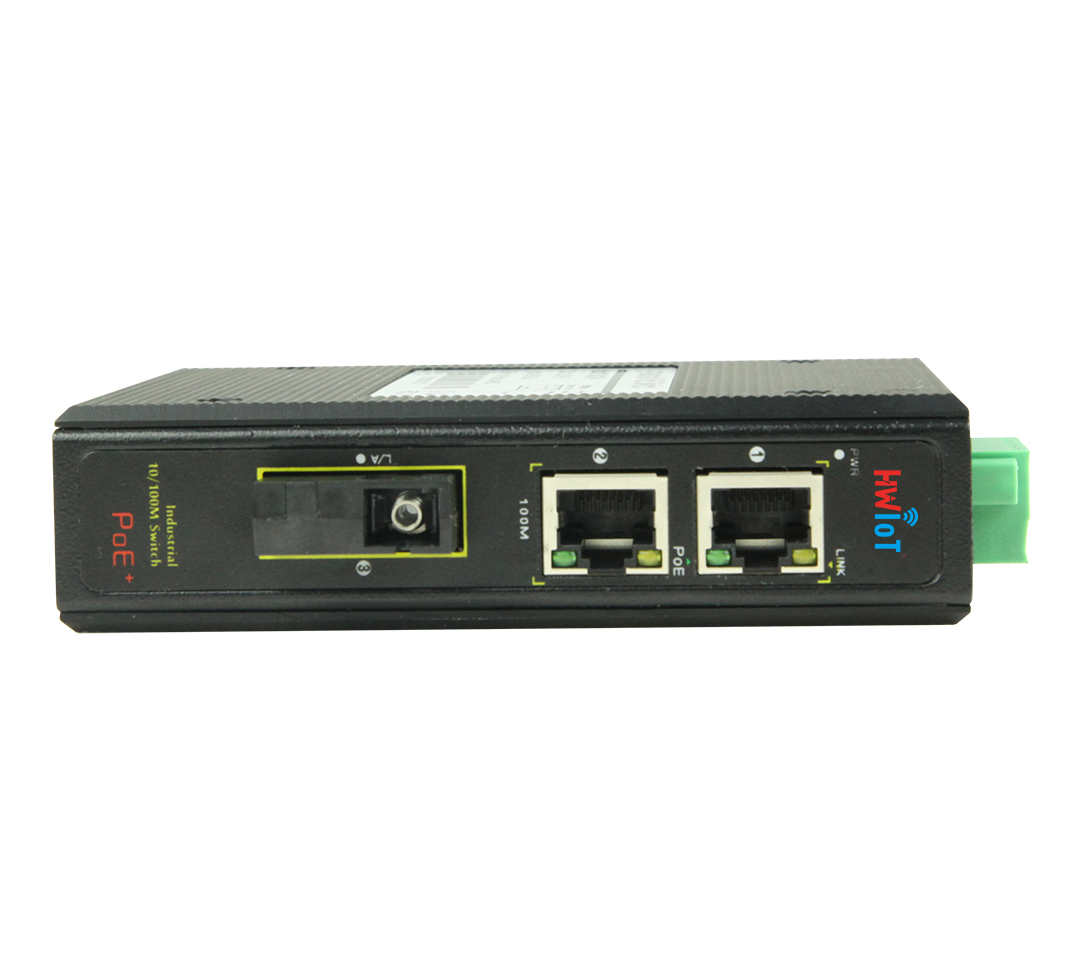

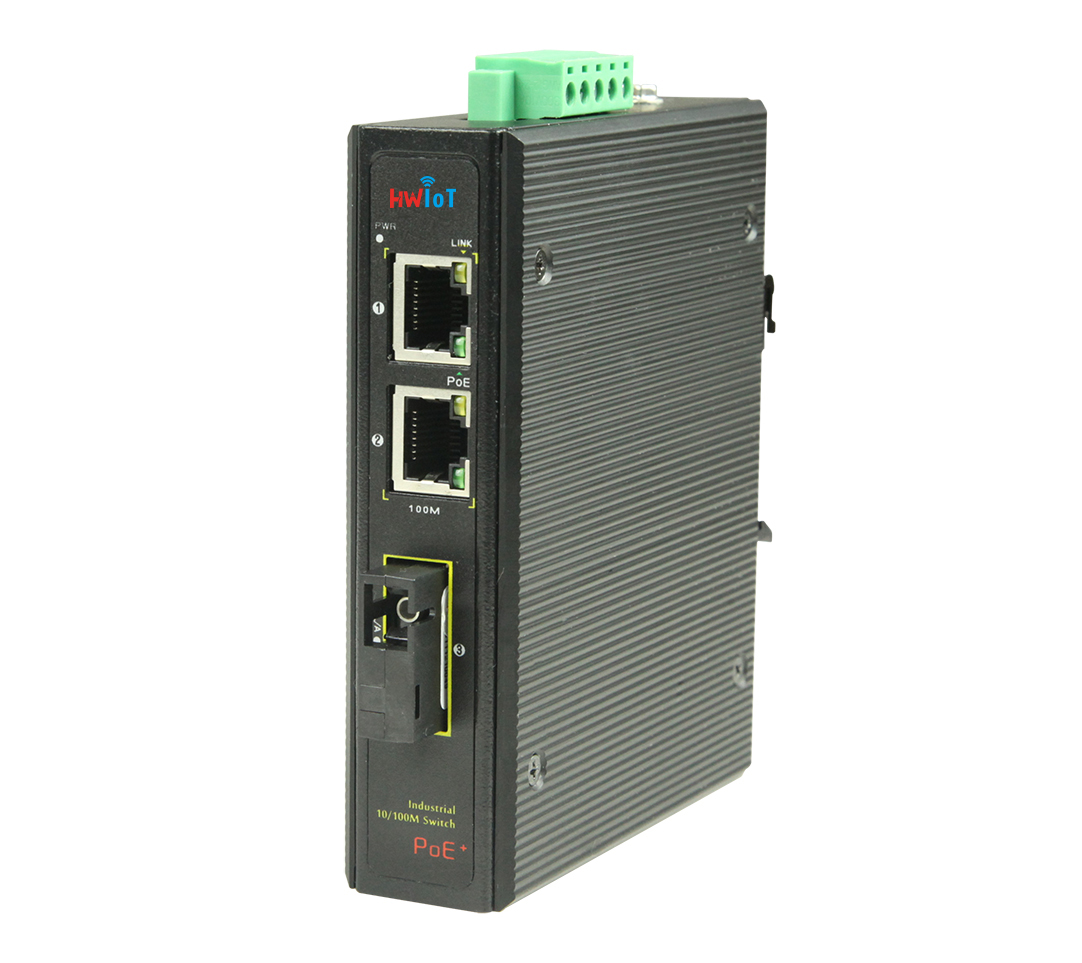

The HW-F100-2-SP-HI industrial PoE switch / media converter, with 2x 10/100M Ethernet ports (PoE) and 1x 100M Optical port, for connecting with devices like computer, switch, hub, server, etc. Optical fiber SC interface extends network transmission distance limit from 100m to above 25KM (Multi-mode 2KM, single-mode 25KM), it simply connects remote multiple motherboard servers, relays, hubs, terminals and multiple terminals.


The components of HW-F100-2-SP-HI were rigorous screened, have superior performance in stability, environmental adaptability. Shells were made by aluminum extrusion, more lighter, stronger, better resistance ability to  corrosion and electromagnetic interference, ensure stability and security of Industrial Ethernet Switch,  plus standard DIN-35 rail type installation method.


Features

Industrial design, 2x 10/100M Ethernet RJ45 ports (PoE) with AutoUplink™ and 1x 100M optical port

Compatible with IEEE802.3af/at

Supports IEEE802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode

RJ-45 port supports Auto MDI/MDI-X

Automatic MAC address learning and aging

Auto-Negotiation for Full-duplex Mode and Half-duplex Mode

Plug and play, with LED indicators for monitoring power/link/activity, easy to use.

Provides DIN35 rail-type installation method

Electromagnetic compatibility of up to 4 grade standard

IP40 protection class

Superior performance, successfully used in industrial field

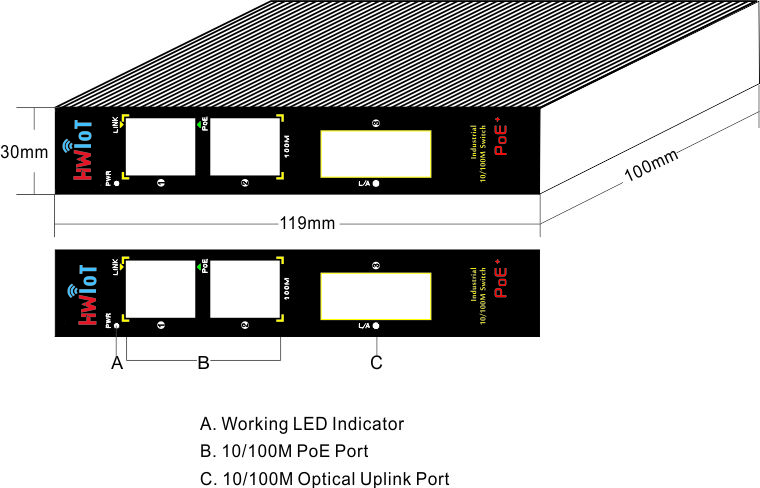

Dimension

Packing list

Product Model:  HW-F100-2-SP-HI

Product Description: 3-port 10/100M Industrial PoE Switch /Media Converter, with 2x PoE RJ45 ports and 1x SC optical fiber Uplink port. Rail-type installation. Compatible with IEEE802.3af/at. The max power for single port is 30W.

Model

Fiber Module Interface Type

Wave length & Transmission Distance

HW-F100-2-MP-HI

Multi-mode dual fiber SC

1310nm / 2km

HW-F100-2-SP-HI

Sing-mode dual fiber SC

1310nm / 25km

HW-F100-2-AP-HI

Sing-mode single fiber SC

1310nm/1550nm / 25km


Note: Power adapter and fiber module are not included in this package. Please order it separately.



Ordering information

Packing List

 3-port 10/100M Industrial PoE Switch /Media Converter (HW-F100-2-SP-HI)

 User Guide

 Warranty Card
