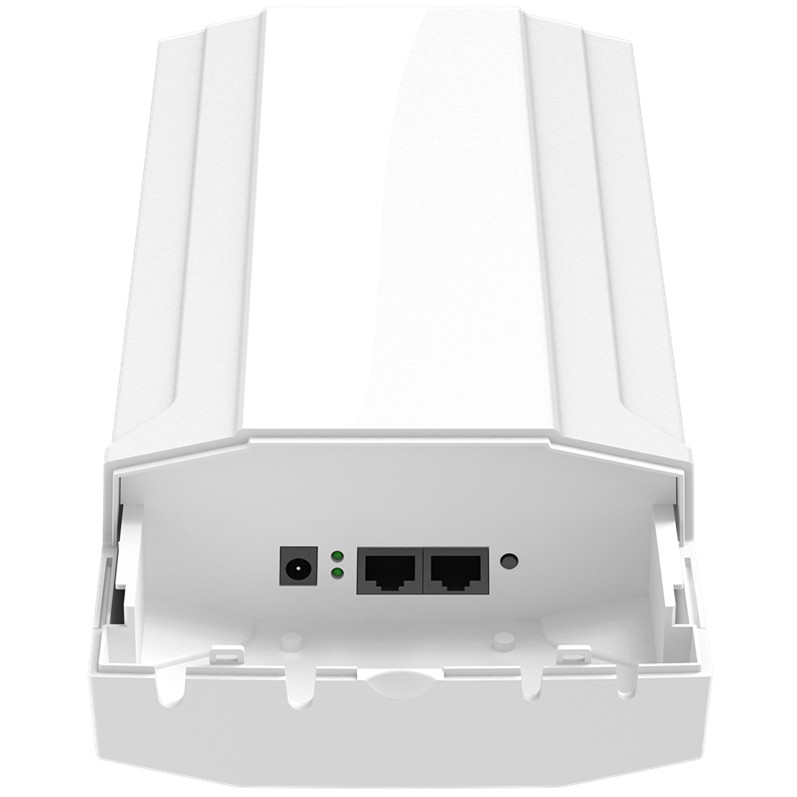

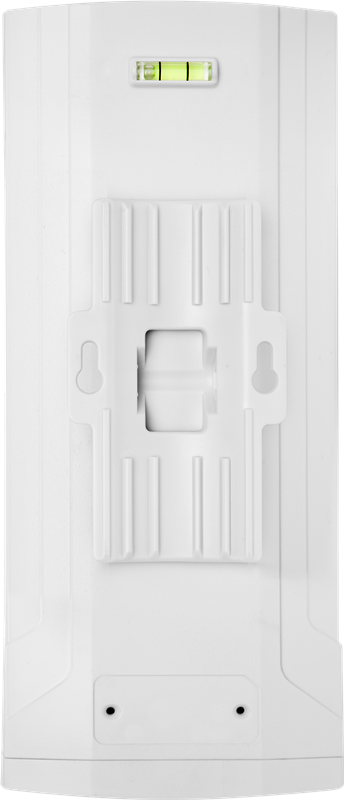

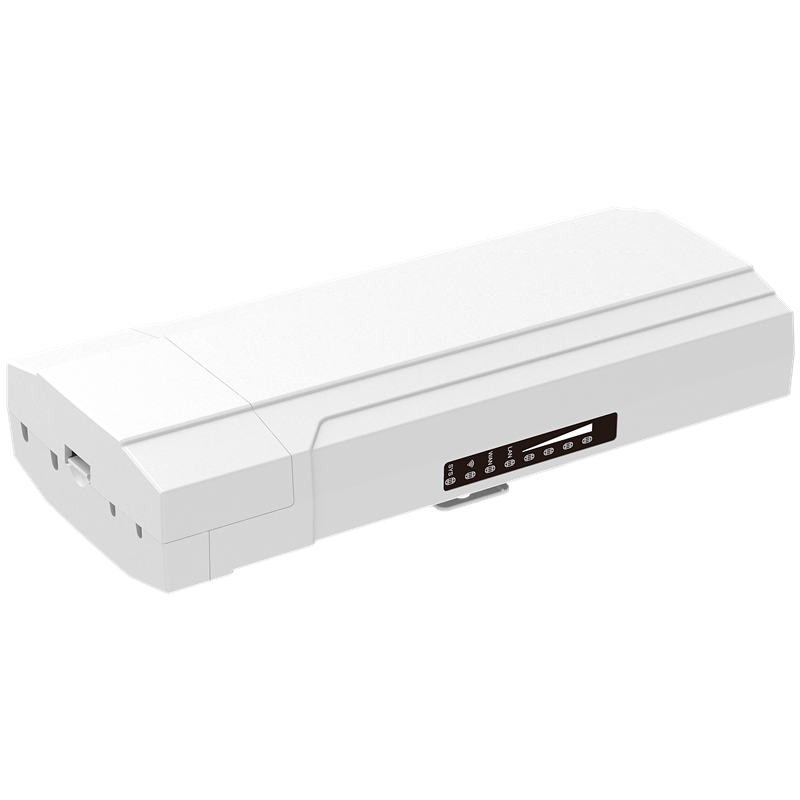

HW-AP-YO is the 1200Mbps high power industrial use Outdoor wireless access point with the next generation 802.11ac Wi-Fi standard, 2x2 MIMO technology, it is dual band, 2.4GHz(300Mbps) and 5GHz(900Mbps), Gigabit WAN/LAN port, the fast Ethernet data rate and clear frequency make 100+ end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

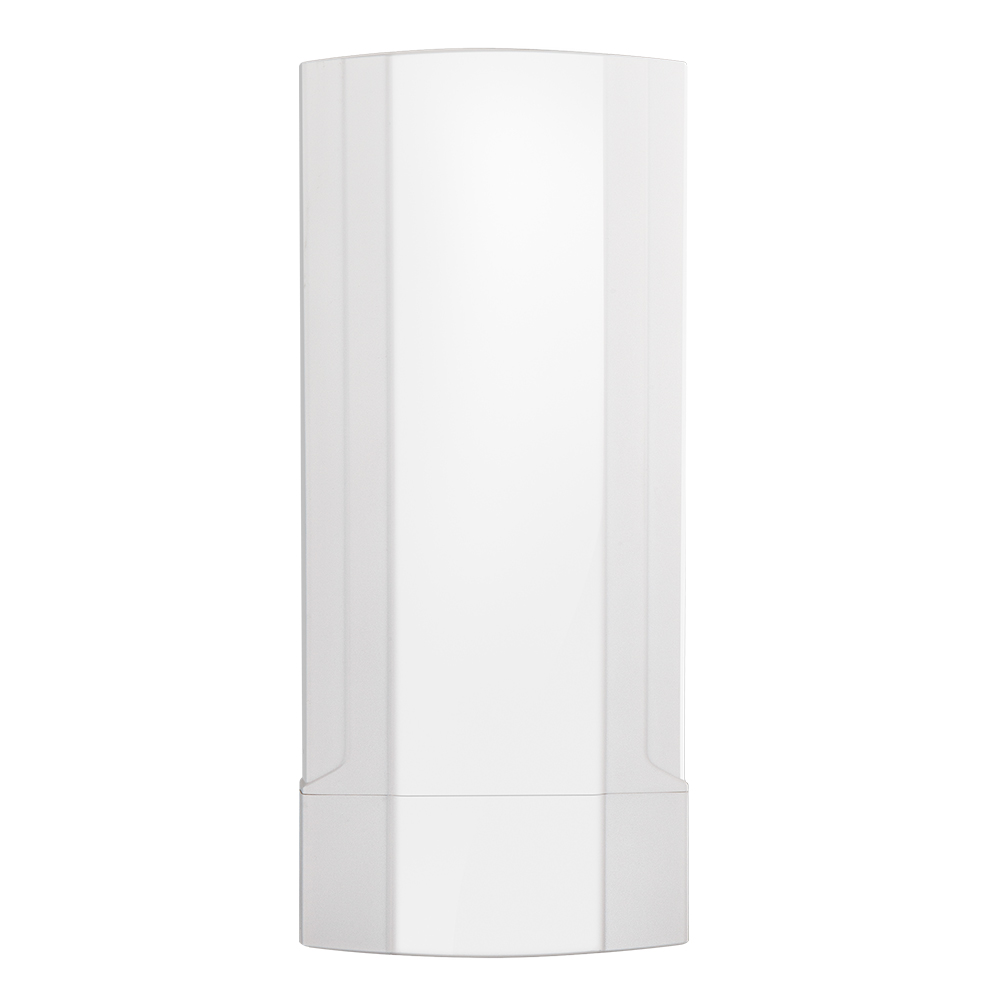

ABS weather-proof case

HW-AP-YO with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, rainy weather. Meantime, it adaptive to various environment, the maximum working temperature can be at -40℃ to 70℃. Suit for any country.

High Power, 5dBi omni antenna, more Wi-Fi Range

Designed in two line Power Amplifier on PCB board, the power can be 500mW high power, build in 5dBi omni Wi-Fi antenna, outdoor Wi-Fi range up to 500 meters.

Power over Ethernet

HW-AP-YO has integrated active Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure. Pls note, the default is 48V IEEE 802.3at PoE, 24V Passive PoE is possible by change PCB board.

Access Controller System & Cloud Management System

Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore.

Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this device more professional in Wi-Fi Projects.
