- Huawang Industrial Power over Ethernet (PoE) Solution includes Industrial Rack-mount PoE Switches, DIN-rail PoE Switches, Industrial PoE Media Converters, Industrial PoE Extenders/Splitters series,, fully compliant with standard IEEE 802.3af and IEEE 802.3at and able to transmit data and power simultaneously at the distance up to 100 meters. With power and data over Ethernet from one unit, the Industrial PoE series can reduce cables deployment and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power lowers the installation costs, simplifies the installation effort and eliminates the need for electricians or extension cords.

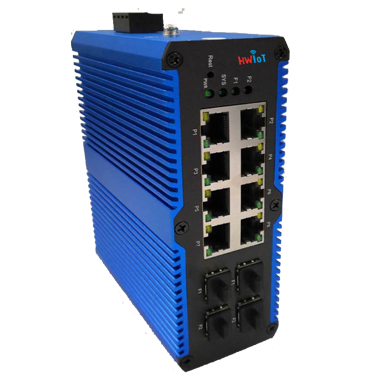

HW-S6800-IT-8P4F-L2+ is a L2 full gigabit industrial Ethernet switches providing 8*10/100/1000Base-Tx electrical ports and 4*1000Base-X optical port. It supports abundant L2 features such as VLAN, RSTP, supports easy embedded Web management and third-party SNMP management. HW-S6800-IT-8P4F-L2+ has industrial metal case with IP40 protection class and meets EMC level 3 industrial requirements. It provides DIN rail mounting design and supports wide operating temperature range of -40 to the +75°C. These features make the product ideal for cost-effective applications that require high-reliability transmission, such as video surveillance, tolling systems, ITS, and factory automation.
8 Ports 10/100/1000M Managed Industrial PoE Switch with 4 SFP Uplink
Fully IEEE802.3af/at compliant
Backplane bandwidth:20Gbps MAC address:4K
IP40 protection
Supports 6000V DC Ethernet Surge protection
Din-Rail and Redundant Power Design
