HW-S5300-IS-8P2E/F
  • HW-S5300-IS-8P2E/F


HW-S5300-IS-8P2E/F provides 8 electrical fast Ethernet ports with POE and 2 Gigabit combo ports. All models are with IP40 protection class and meet EMC industrial level 4 requirements. In addition to its compact size for space-saving installation, each has passed a 100% burn-in test in 85°C to ensure its quality and high-reliability transmission in wide operating temperature range of -40 to the +85°C. All of these features make the product ideal for applications that require high-reliability transmission,such as video surveillance,tolling systems,ITS and factory automation.


产品特征

8 Ports 10/100M Industrial PoE Switch with 2 Gigabit Combo Uplink

Fully IEEE802.3af/at compliant

MAC address: 8K

Backplane bandwidth: 12.8Gbps

IP40 protection

Supports 6000V DC Ethernet Surge protection

Din-Rail and Redundant Power Design

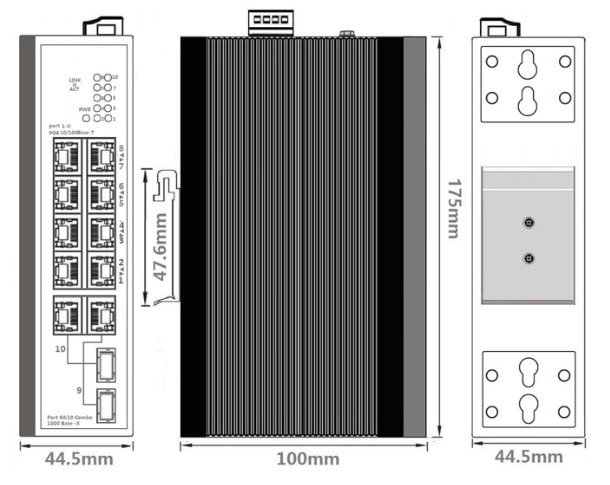

产品尺寸

包装清单

Packing List CONTENT QTY UNIT
8-Port 10/100/1000M PoE Switch 1 SET
AC power line 1 PC
Mounting Kits 1 SET
User guide 1 PC
Warranty card and certificate of qualification 1 PC

订购信息

Ordering Info
HW-S5300-IS-8P2E/F   8*10/100Base-Tx RJ45 (IEEE802.3af/at POE)+ 2*1000Base-X combo (SFP + RJ45), unmanaged industrial Ethernet Switch, Din-Rail, 48-52VDC power input
