HW-S5300-IS-8E2E/F
  • HW-S5300-IS-8E2E/F
The HW-S5300-IS-8E2E/F   provides 8*10/100Base-Tx Ethernet ports, and 2* 1000M gigabit Ethernet combo ports. All models are with IP40 protection class and meet EMC industrial level 4 requirements. It provides 12-36 VDC wide voltage range power inputs, DIN rail mounting, wide operating temperature range of  -40 to the +85°C.  In addition to its compact size for space-saving installation, each product has passed a 100% burn-in test in 85°C to ensure its quality.

All of these features make the product ideal for applications that require high-reliability transmission , such as video surveillance, tolling systems, ITS, and factory automation.


12-36VDC wide voltage range power inputs
As low as 6 watts load power consumption
As  big as 4M buffer
-40 to 85°C operating temperature range
IP40 protection class with metal housing
Fanless design
Level 4 EMC Protection

产品特征

8 Ports 10/100M Industrial Ethernet Switch with 2 Gigabit Combo Uplink

MAC address:16K

Backplane bandwidth: 5.6Gbps

IP40 protection

Supports 6000V DC Ethernet Surge protection

Din-Rail and Redundant

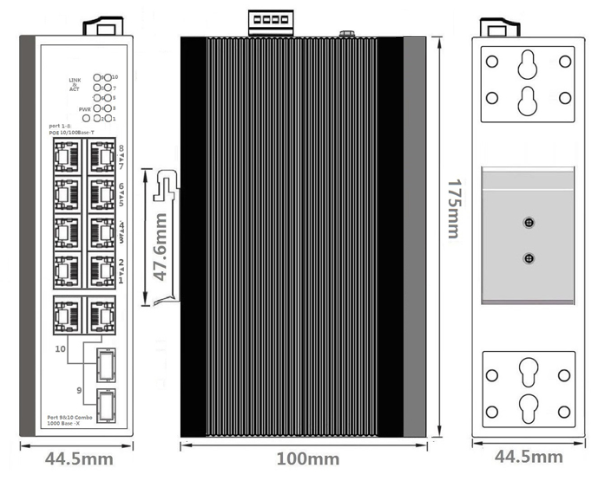

产品尺寸

包装清单

Packing List CONTENT QTY UNIT
8-Port 10/100/1000M Industrial Switch 1 SET
AC power line 1 PC
Mounting Kits 1 SET
User guide 1 PC
Warranty card and certificate of qualification 1 PC

订购信息

Ordering Info
HW-S5300-IS-8E2E/F   8*10/100Base-TX+2*Gigabit Combo, Unmanaged Industrial Ethernet Switch, Din-Rail  and Wall mounted installation,  12-36VDC power input.
