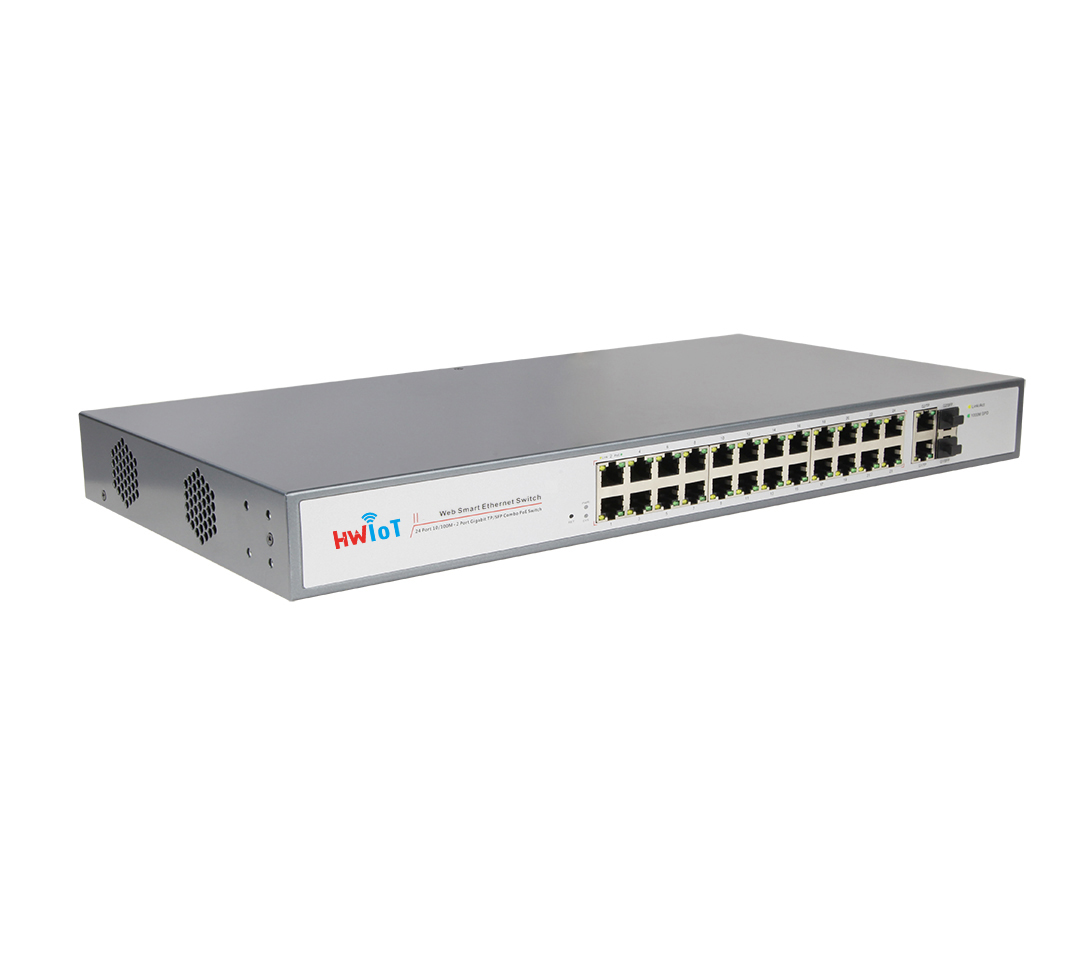

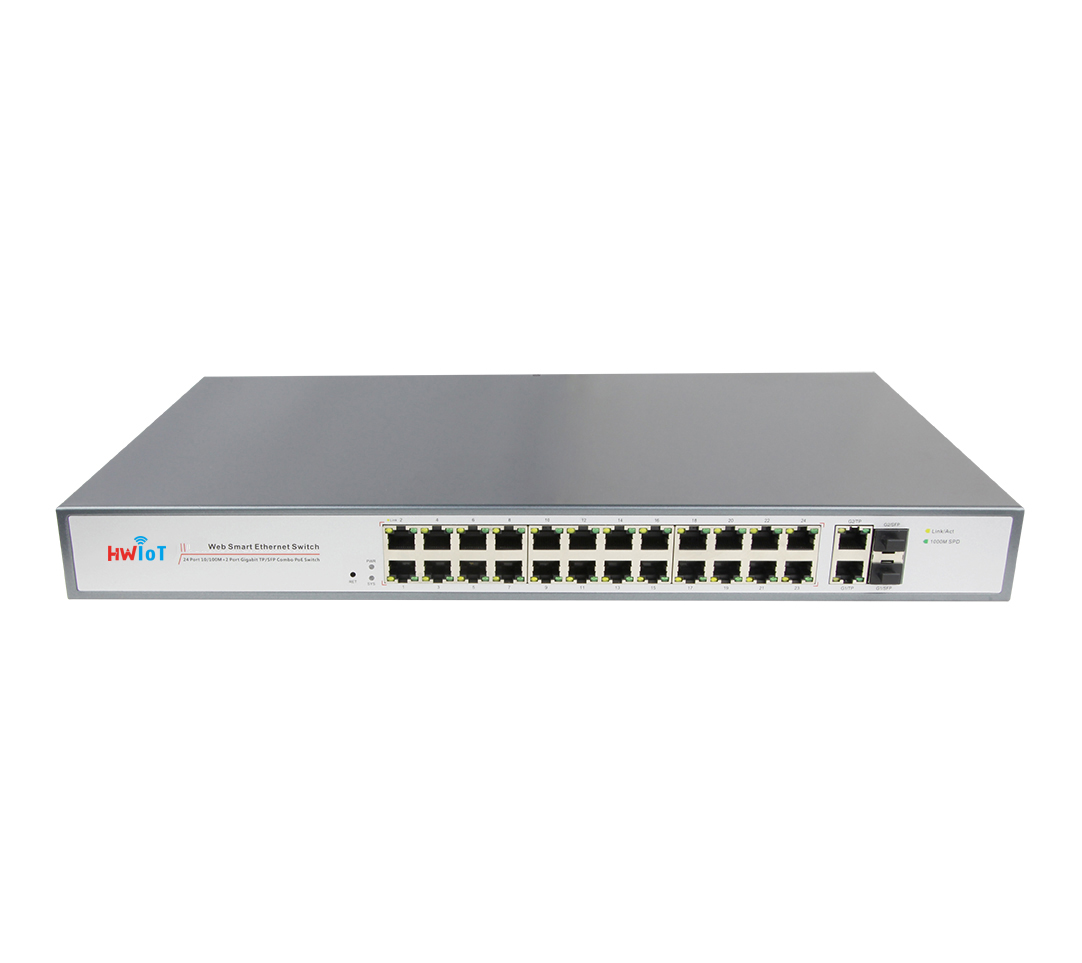

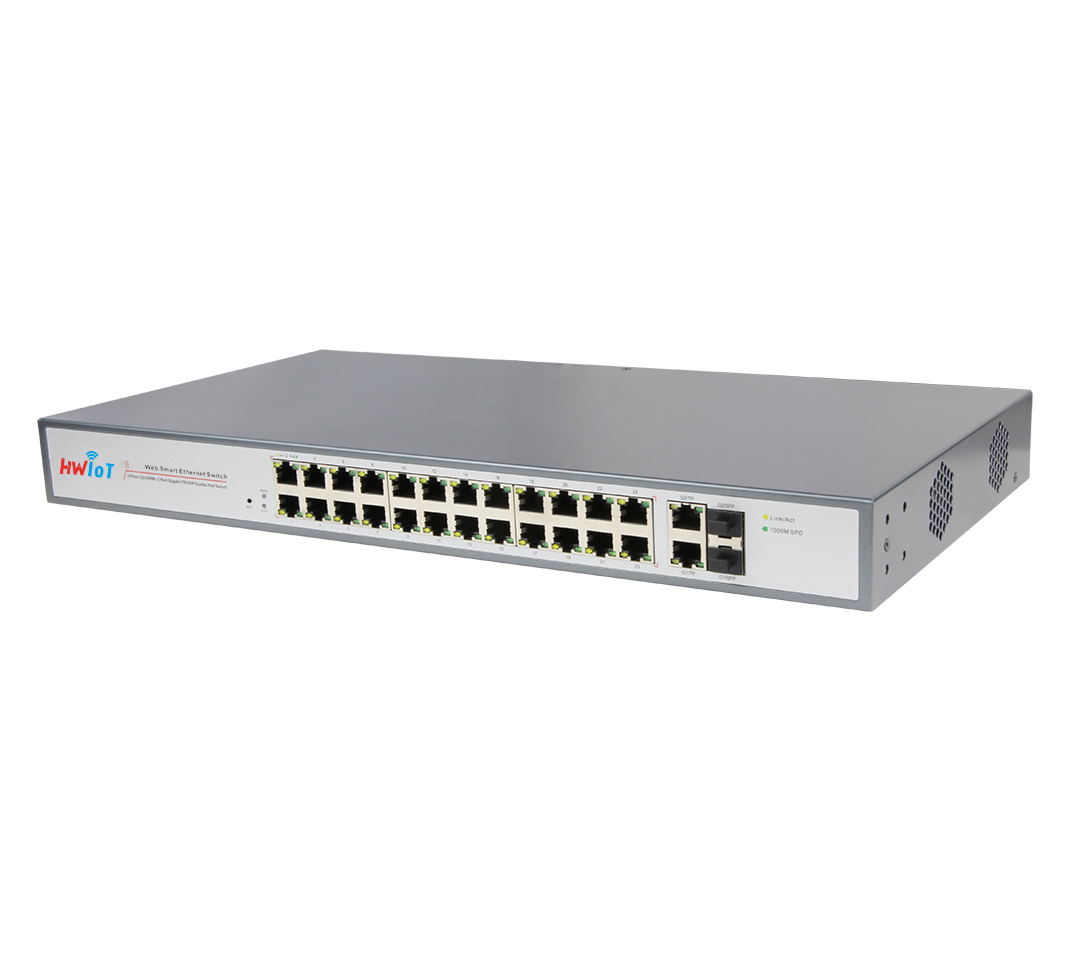

This HW-S5300-EI-242E/F-L2 switch provides a network point for data transmission. All the 24 Ethernet ports can be connected with 10/100Mps quickly, and the uplink port is 1.25Gbps fiber interface. In short, TheHW-S5300-EI-242EF-L2 features simple and reliable design, duplex and high-speed.



This cost-effective HW-S5300-EI-242E/F-L2 provide network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. The devices far away from power socket are very suitable for hanging on the wall or ceiling. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.


产品特征

24*10/100Mbps auto-sensing RJ45 ports + 2*gigabit combo ports

Supports port auto-flip (Auto MDI/ MDIX)

Uplink port: 1.25Gbps SFP fiber interface

Adopts store-and-forward architecture

Built-in 1U rack power supply series, easy to place it into standard mounting brackets

Providing an abundant & complete management functions, including VLAN based on port, VLAN based on 802.1Q, QOS, IGMP Snooping, RSTP, Broadcast Storm Restraint, Port Aggregation, Port mirroring, Port management, SNMP and NTP etc.

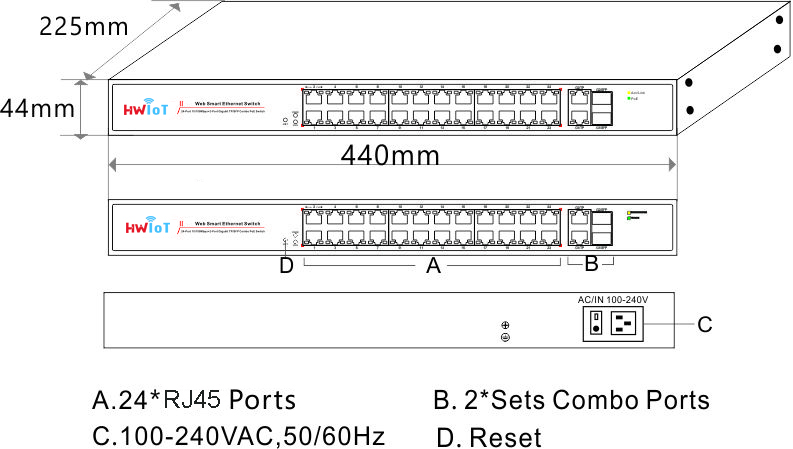

产品尺寸

包装清单

Packing List

Managed Switch with 24 Ethernet Ports and 2 Gigabit Combo Ports (HW-S5300-EI-242EF-L2)

Power Cable

Mounting Kits

User Guide

Warranty Card

订购信息

Product Model: HW-S5300-EI-242EF-L2

Product Description: 24*10/100M Ethernet ports + 2*gigabit combo ports Managed Switch, built-in power supply.
